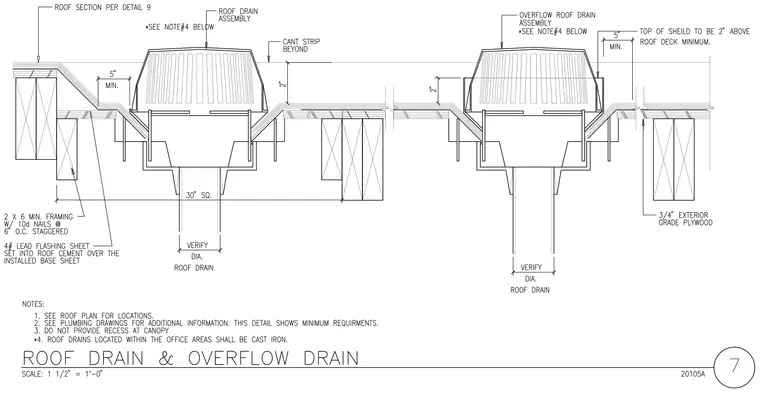

The roof drain assembly and overflow roof drain assembly integrate with the roof deck, utilizing four-pound lead flashing sheets set into roof cement over the installed base sheet. Two-by-six minimum wood framing is secured with ten-penny nails at six inches on center staggered. The design incorporates cant strips beyond the drain bodies and maintains a minimum five-inch clearance to surrounding deck elements. The top of the shield extends a minimum of two inches above the roof deck.
