Ramp landings require a minimum sixty-inch clear length at bottom and top runs, with widths matching or exceeding the connecting ramp run. Turnaround spaces at direction changes require a minimum seventy-two-inch dimension in the direction of travel. Edge protection and guardrails are provided as required along landings and ramp runs. Handrails extend twelve inches past the ramp run and remain continuous along the inside of directional turns.

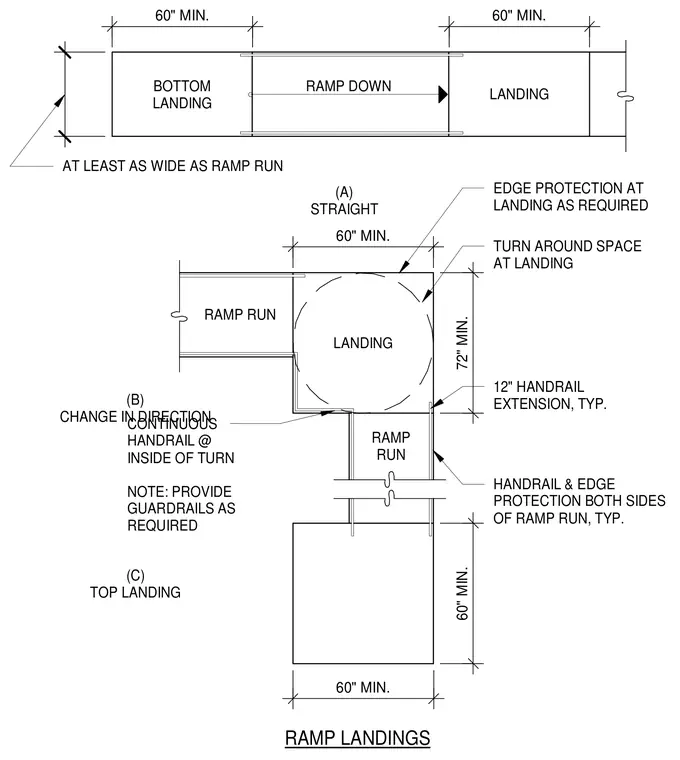

60" MIN. 60" MIN. 72" MIN. 60" MIN. 60" MIN. 60" MIN. LANDING BOTTOM LANDING LANDING RAMP RUN (A) STRAIGHT (C) TOP LANDING RAMP LANDINGS RAMP RUN AT LEAST AS WIDE AS RAMP RUN (B) CHANGE IN DIRECTION RAMP DOWN EDGE PROTECTION AT LANDING AS REQUIRED TURN AROUND SPACE AT LANDING 12" HANDRAIL EXTENSION, TYP. HANDRAIL & EDGE PROTECTION BOTH SIDES OF RAMP RUN, TYP. CONTINUOUS HANDRAIL @ INSIDE OF TURN NOTE: PROVIDE GUARDRAILS AS REQUIRED
