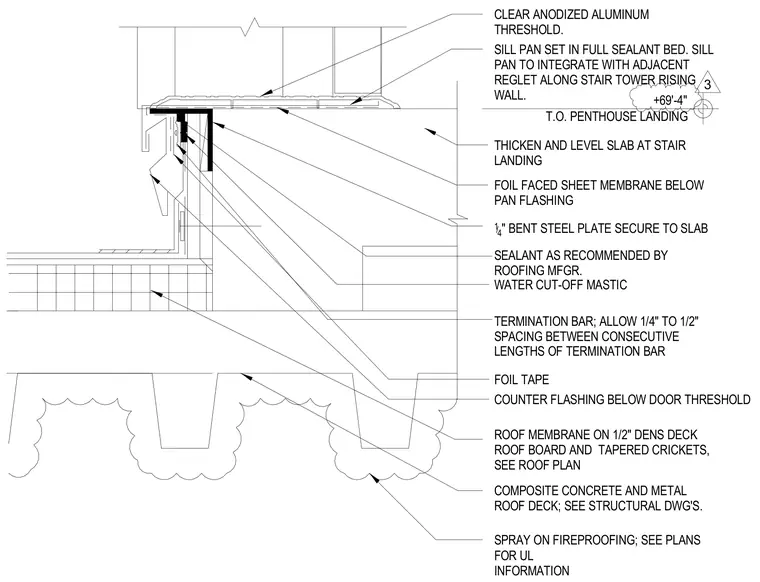

A clear anodized aluminum threshold sits atop a thickened concrete slab at the stair landing, resting over a sill pan set in a full sealant bed and integrated with an adjacent reglet on the stair tower rising wall. A foil-faced sheet membrane and foil tape run below the pan flashing, which works in conjunction with a counter flashing located beneath the door threshold. A quarter-inch bent steel plate is secured to the slab face above a termination bar sealed with water cut-off mastic, leaving a quarter-inch to half-inch spacing between consecutive lengths. The assembly ties into a roof membrane layered over half-inch DensDeck roof board and tapered crickets, bearing on a composite concrete and metal roof deck treated with spray-on fireproofing.
1/4 " BENT STEEL PLATE SECURE TO SLAB SPRAY ON FIREPROOFING; SEE PLANS FOR UL INFORMATION THICKEN AND LEVEL SLAB AT STAIR LANDING CLEAR ANODIZED ALUMINUM THRESHOLD. ROOF MEMBRANE ON 1/2" DENS DECK ROOF BOARD AND TAPERED CRICKETS, SEE ROOF PLAN COMPOSITE CONCRETE AND METAL ROOF DECK; SEE STRUCTURAL DWG'S. WATER CUT-OFF MASTIC TERMINATION BAR; ALLOW 1/4" TO 1/2" SPACING BETWEEN CONSECUTIVE LENGTHS OF TERMINATION BAR SEALANT AS RECOMMENDED BY ROOFING MFGR. SILL PAN SET IN FULL SEALANT BED. SILL PAN TO INTEGRATE WITH ADJACENT REGLET ALONG STAIR TOWER RISING WALL. FOIL FACED SHEET MEMBRANE BELOW PAN FLASHING FOIL TAPE COUNTER FLASHING BELOW DOOR THRESHOLD +69'-4" T.O. PENTHOUSE LANDING 3
