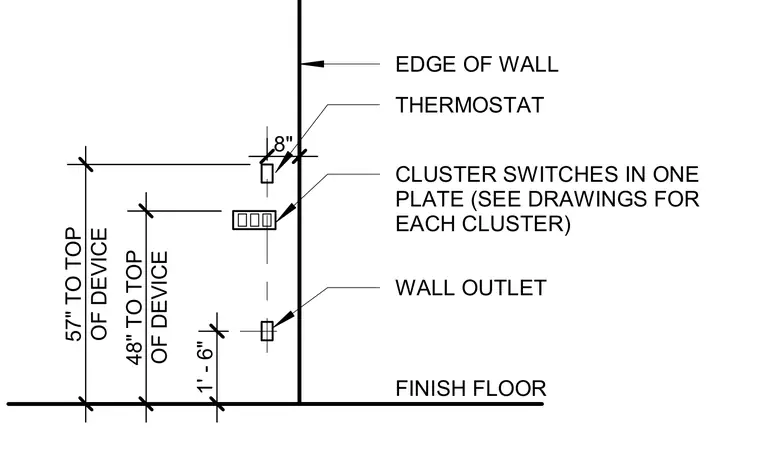

Electrical devices are mounted on a wall at specific vertical dimensions relative to the finish floor. A wall outlet is positioned at one foot six inches to the top of the device. A cluster of switches in a single plate is located at forty-eight inches to the top of the device. A thermostat is placed at fifty-seven inches to the top of the device and offset eight inches horizontally from the edge of the wall.
8" 1' - 6" OF DEVICE 48" TO TOP OF DEVICE 57" TO TOP FINISH FLOOR EDGE OF WALL THERMOSTAT CLUSTER SWITCHES IN ONE PLATE (SEE DRAWINGS FOR EACH CLUSTER) WALL OUTLET
