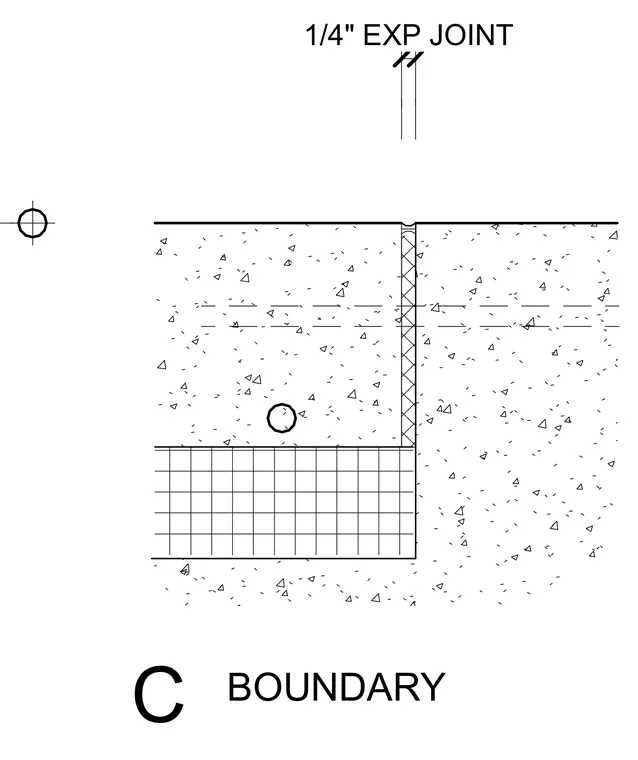

A one-quarter inch expansion joint separates adjacent concrete sections. The joint incorporates a compressible filler material running continuously through the depth of the assembly.
