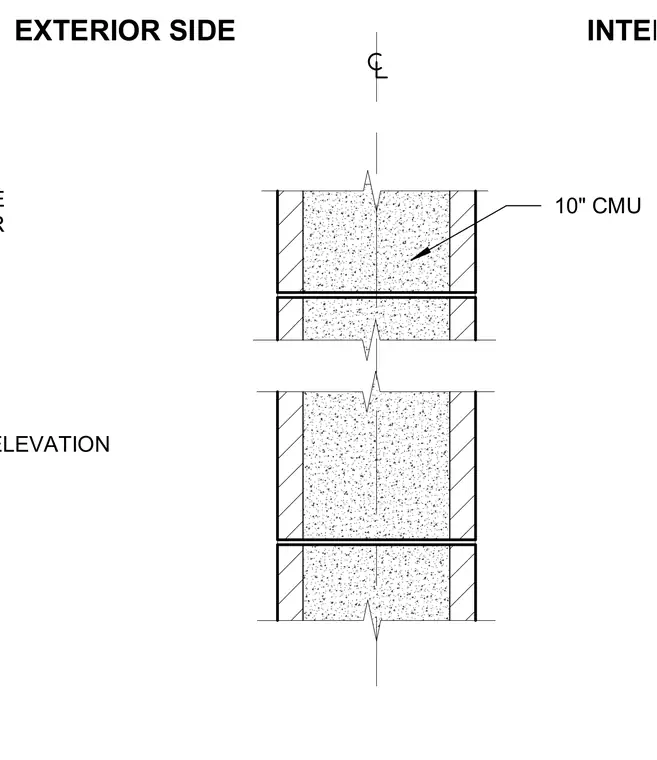

A ten-inch concrete masonry unit wall assembly is flanked by six-inch cold-formed metal stud framing on the interior side. Five-eighths-inch gypsum board is specified per structural drawings on the metal stud framing. The exterior side of the masonry wall is labeled for reference.
INTERIOR SIDE EXTERIOR SIDE 10" CMU 6" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR 5/8" GYP. BD., SEE INTERIOR ELEVATION
