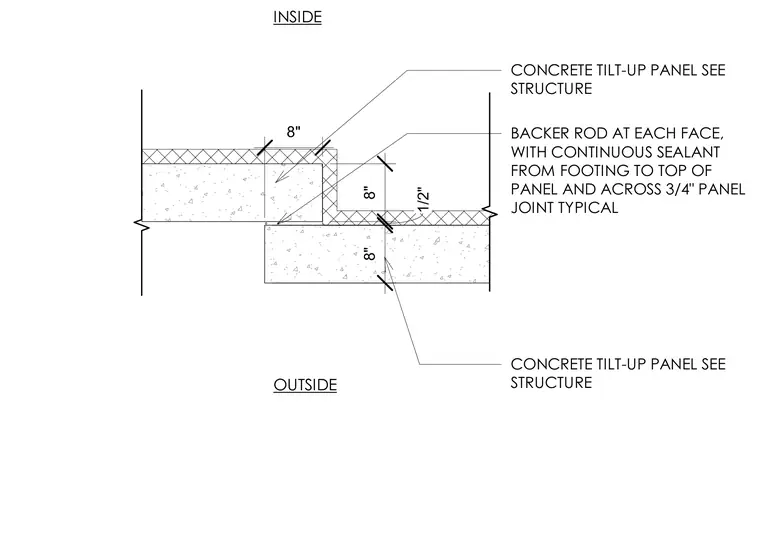

Adjacent concrete tilt-up wall panels form a stepped vertical joint sealed at both the inside and outside faces. A backer rod is installed at each face backed by continuous sealant extending from the footing to the top of the panel and across the three-quarter-inch panel joint typical. The concrete tilt-up panels are sized and detailed per structural drawings.
CONCRETE TILT-UP PANEL SEE STRUCTURE CONCRETE TILT-UP PANEL SEE STRUCTURE INSIDE OUTSIDE BACKER ROD AT EACH FACE, WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 3/4" PANEL JOINT TYPICAL 8" 1/2" 8" 8"
