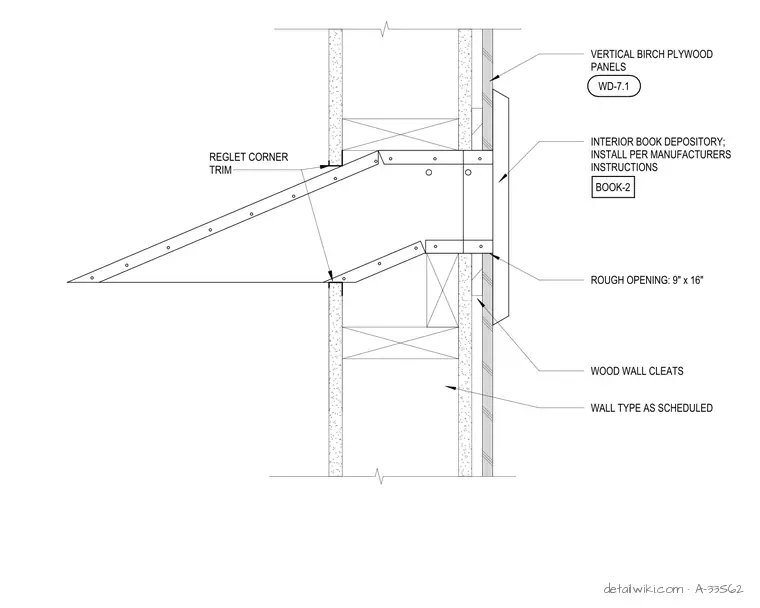

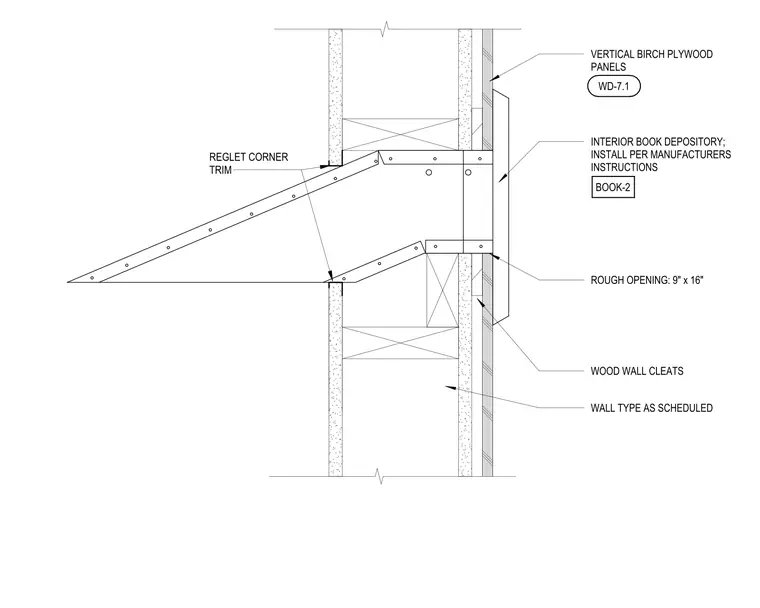

The interior book depository unit fits into a nine-inch by sixteen-inch rough opening within a wall assembly framed with wood wall cleats. Reglet corner trim finishes the wall interface, and vertical birch plywood panels designated as WD-7.1 surround the unit. The depository unit, identified as BOOK-2, is installed according to the manufacturer's instructions within the wall type as scheduled.
