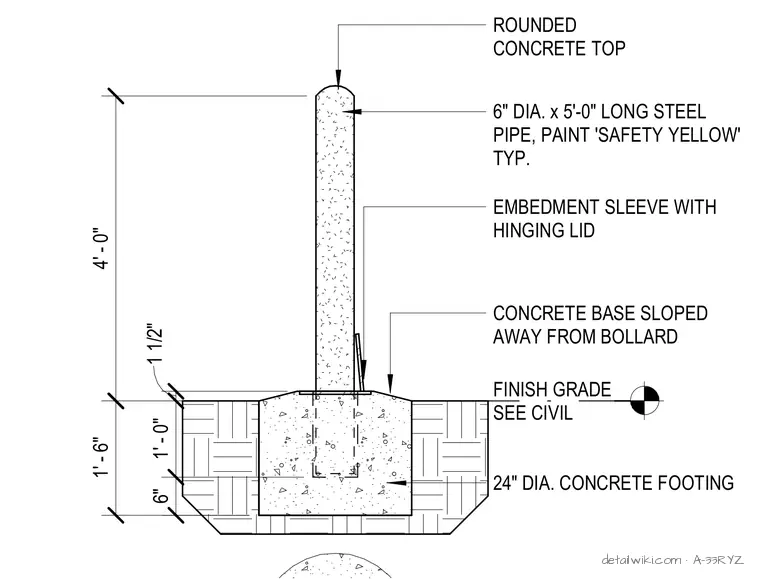

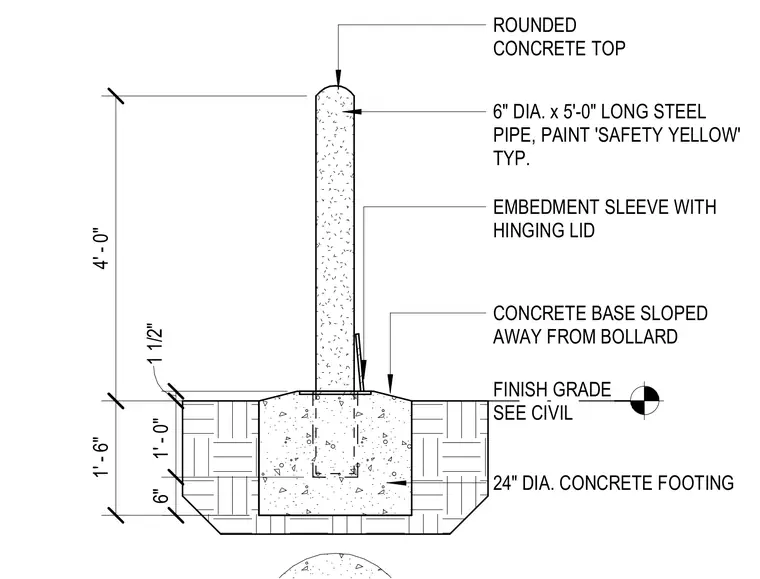

This assembly consists of a 6-inch diameter by 5-foot long steel pipe bollard finished with safety yellow paint. The bollard is secured within an embedment sleeve featuring a hinging lid to allow for removal. The sleeve is cast into a 24-inch diameter concrete footing that extends 1 foot 6 inches below the finish grade. The concrete base is sloped away from the bollard to promote drainage, with the top of the bollard pipe finished with a rounded concrete cap.
Text on the drawing
1 1/2" 1' - 0" 6" 1' - 6" 24" DIA. CONCRETE FOOTING ROUNDED CONCRETE TOP 6" DIA. x 5'-0" LONG STEEL PIPE, PAINT 'SAFETY YELLOW' TYP. CONCRETE BASE SLOPED AWAY FROM BOLLARD FINISH GRADE SEE CIVIL 4' - 0" EMBEDMENT SLEEVE WITH HINGING LID
