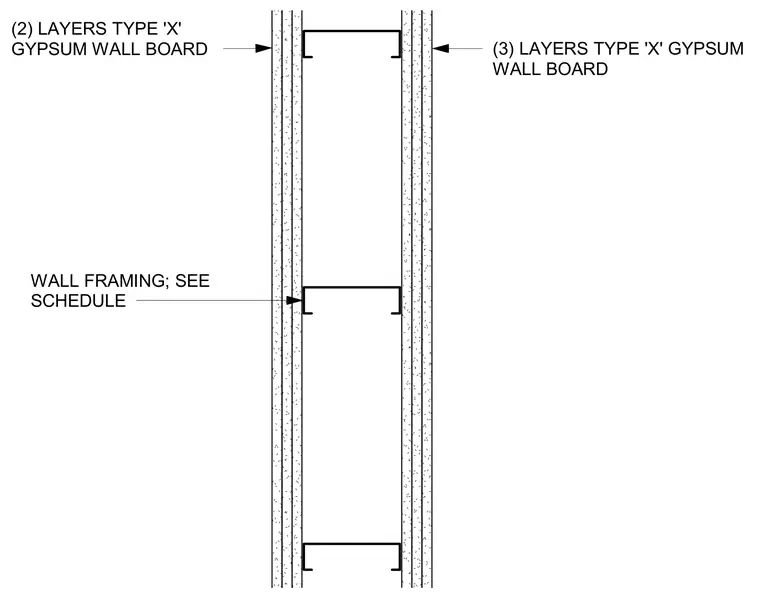

This partition wall assembly consists of steel stud framing sized per the architectural schedule. The left side of the wall is finished with two layers of Type X gypsum wall board. The right side of the wall is finished with three layers of Type X gypsum wall board.
(2) LAYERS TYPE 'X' GYPSUM WALL BOARD WALL FRAMING; SEE SCHEDULE (3) LAYERS TYPE 'X' GYPSUM WALL BOARD
