The suspended tile soffit assembly hangs from overhead deck construction using 12 gauge wire hangers, bracing, and brackets. Framing consists of 3-5/8 inch or 6 inch metal track at the overhead structure depending on alignment with deck flutes, supporting 3-5/8 inch metal studs. The soffit face and underside receive 5/8 inch tile backer board secured with corrosion-resistant screws. Finished tile is applied directly to the face and underside of the soffit board. Bottom of ceiling and bottom of soffit elevations are coordinated per the reflected ceiling plan.

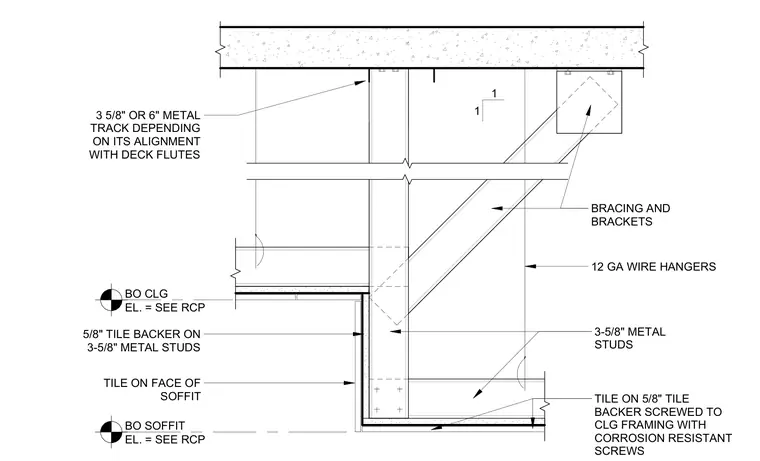

BO CLG EL. = SEE RCP BO SOFFIT EL. = SEE RCP TILE ON 5/8" TILE BACKER SCREWED TO CLG FRAMING WITH CORROSION RESISTANT SCREWS 12 GA WIRE HANGERS BRACING AND BRACKETS 3 5/8" OR 6" METAL TRACK DEPENDING ON ITS ALIGNMENT WITH DECK FLUTES 5/8" TILE BACKER ON 3-5/8" METAL STUDS TILE ON FACE OF SOFFIT 1 1 3-5/8" METAL STUDS
