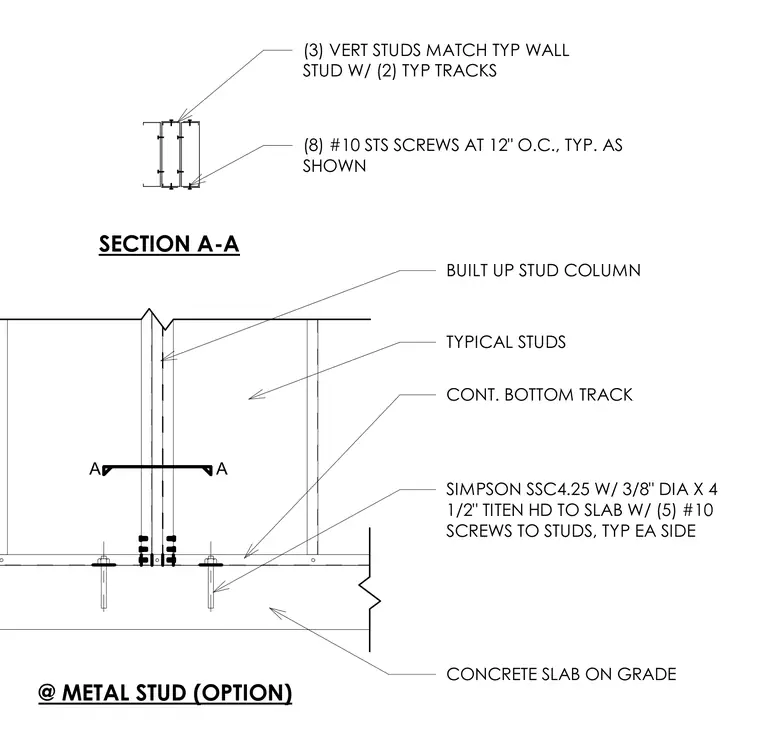

A built-up stud column is anchored to a concrete slab on grade using a continuous bottom track and Simpson anchor bolts. The built-up column consists of three vertical studs matching the typical wall studs, framed with two tracks and fastened together with eight number ten structural self-tapping screws at twelve inches on center. The continuous bottom track secures to the concrete slab with three-eighths-inch diameter by four-and-one-half-inch Titen HD anchors. Five number ten screws connect the track assembly to the studs on each side.
SECTION A-A BUILT UP STUD COLUMN TYPICAL STUDS CONT. BOTTOM TRACK SIMPSON SSC4.25 W/ 3/8" DIA X 4 1/2" TITEN HD TO SLAB W/ (5) #10 SCREWS TO STUDS, TYP EA SIDE CONCRETE SLAB ON GRADE A A @ METAL STUD (OPTION) (3) VERT STUDS MATCH TYP WALL STUD W/ (2) TYP TRACKS (8) #10 STS SCREWS AT 12" O.C., TYP. AS SHOWN P — E : — A I
