Door Jamb and Head at CMU Wall

Materials

Steel Masonry / CMU Metal (misc.)

Elements

Walls Partitions Doors Floors / Slabs

Connections

Welded Connection

About this detail

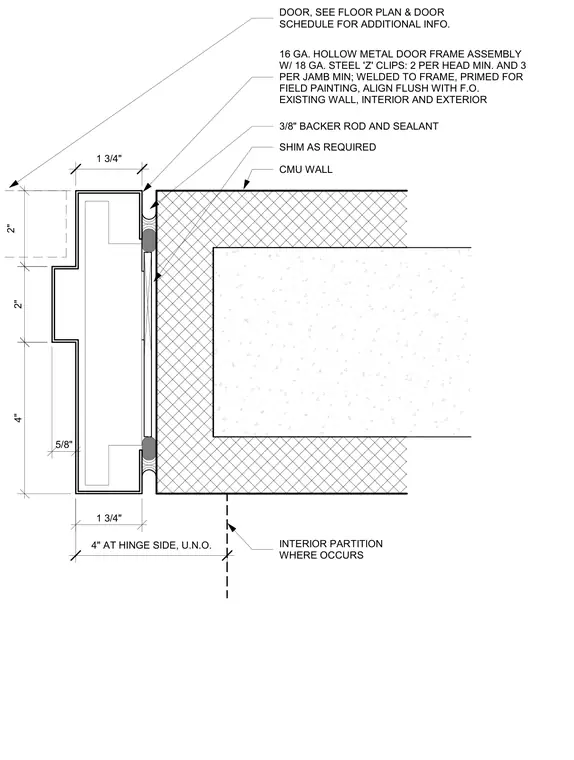

A sixteen-gauge hollow metal door frame assembly connects to an existing concrete masonry unit wall utilizing eighteen-gauge steel Z-clips spaced at a minimum of two per head and three per jamb, welded directly to the frame and primed for field painting. Shims are placed as required between the frame and the masonry wall for proper alignment flush with the face of the existing wall. A three-eighths-inch backer rod and sealant fill the joint between the frame and the masonry opening. An interior partition ties into the assembly where indicated, and the one-and-three-quarter-inch door is set with a four-inch dimension at the hinge side unless noted otherwise.
