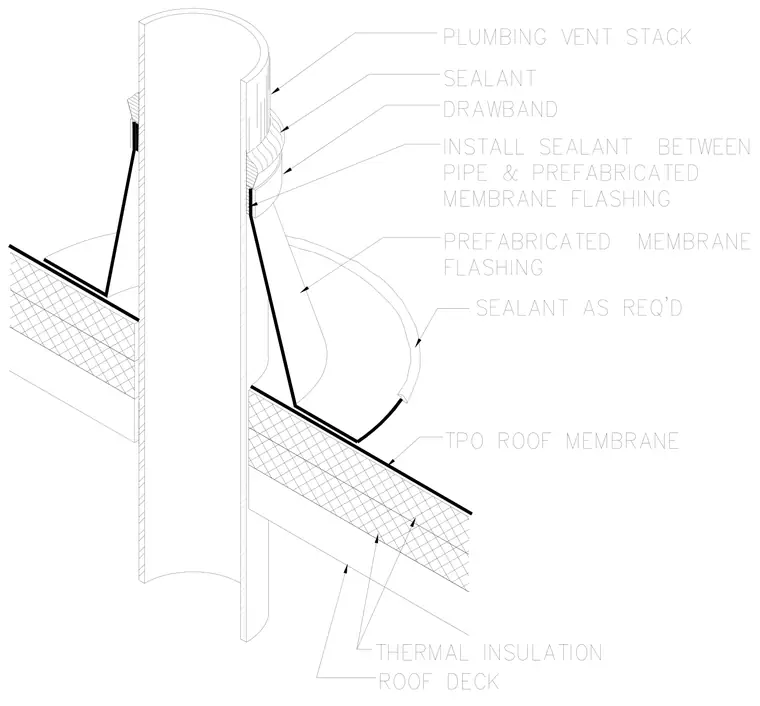

A plumbing vent stack penetrates the roof deck and thermal insulation, sealed with a prefabricated membrane flashing and drawband. Sealant is installed between the pipe and the prefabricated membrane flashing, with additional sealant applied as required at the roof membrane interface. The assembly integrates directly with the TPO roof membrane to maintain waterproofing continuity.
