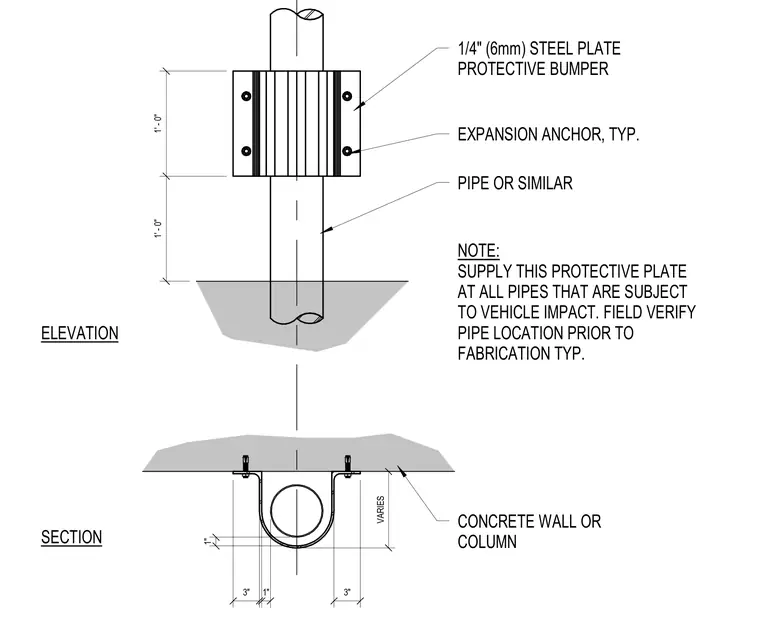

A one-quarter-inch steel plate protective bumper is mounted to a concrete wall or column to shield vulnerable piping from vehicle impact. The curved steel guard wraps around the pipe and is secured with typical expansion anchors on both mounting flanges. Pipe locations must be field verified prior to fabrication of the protective assembly. This protective plate is required at all pipes subject to potential vehicle collision.
1" 1" 3" 3" VARIES CONCRETE WALL OR COLUMN 1' - 0" 1' - 0" 1/4" (6mm) STEEL PLATE PROTECTIVE BUMPER EXPANSION ANCHOR, TYP. PIPE OR SIMILAR NOTE: SUPPLY THIS PROTECTIVE PLATE AT ALL PIPES THAT ARE SUBJECT TO VEHICLE IMPACT. FIELD VERIFY PIPE LOCATION PRIOR TO FABRICATION TYP. ELEVATION SECTION
