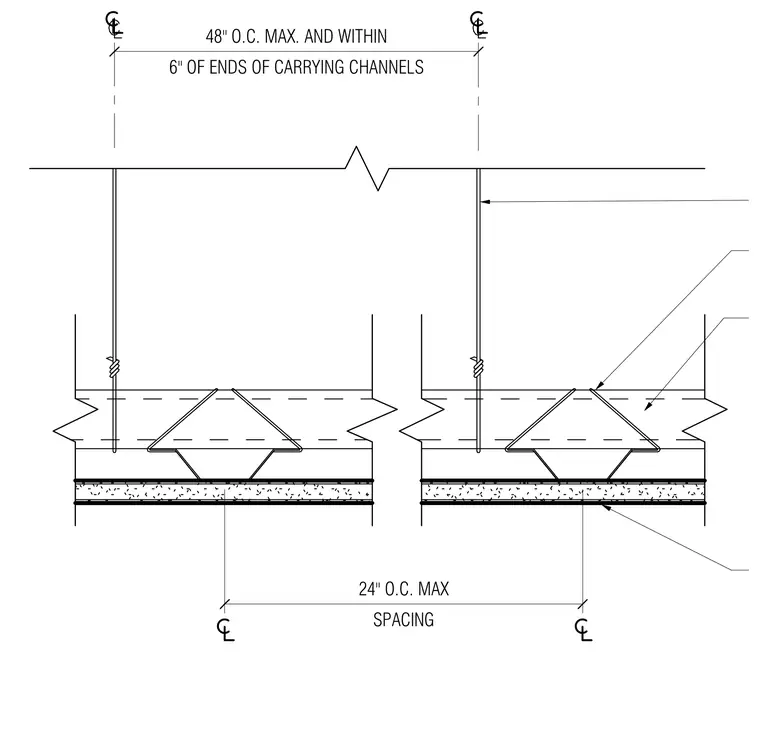

A suspended gypsum board ceiling assembly is supported by carrying channels spaced at forty-eight inches on center maximum, with hanger wires positioned within six inches of the channel ends. Furring channels snap into the carrying channels at twenty-four inches on center maximum spacing. Gypsum board is fastened to the underside of the furring channels.
6" OF ENDS OF CARRYING CHANNELS 48" O.C. MAX. AND WITHIN SPACING 24" O.C. MAX
