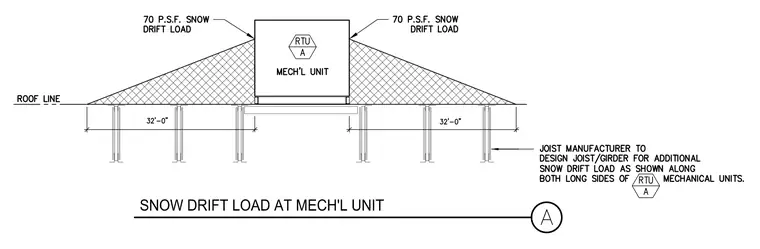

A rooftop mechanical unit sits on the roof line with a seventy pounds per square foot snow drift load diagramming the accumulation on both long sides of the unit. Dimension lines indicate thirty-two foot spans between structural supports beneath the roof line. A drawing note instructs the joist manufacturer to design the joists and girders for the additional snow drift load along both long sides of the mechanical unit.
