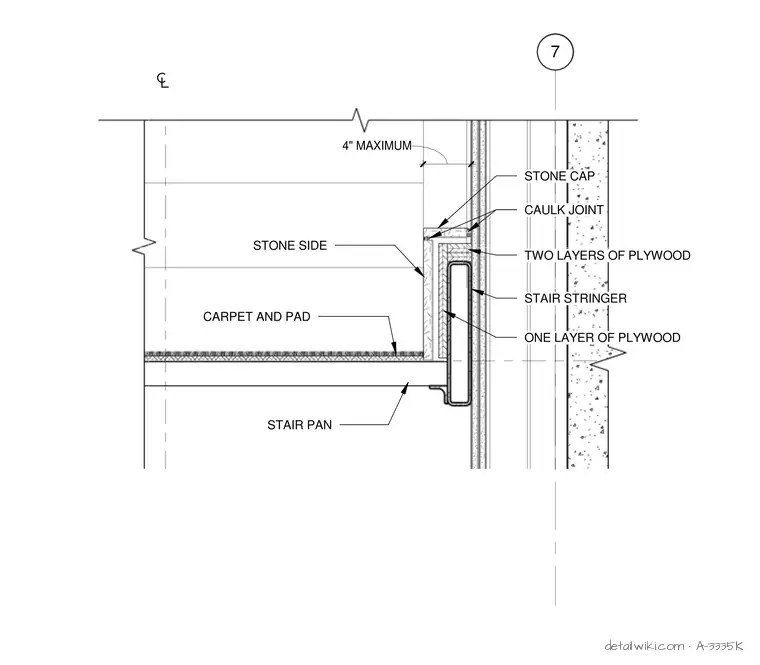

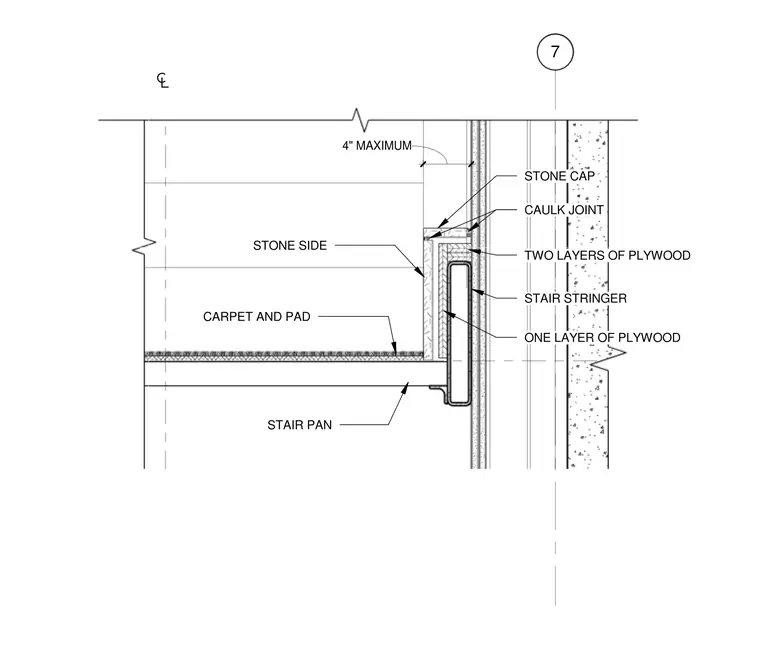

A-3335K — Stair Stone Detail

Architectural · A-3335K

Stair Stone Detail

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A-562
Discipline: Architectural

Materials

Steel Stone Timber / Wood

Elements

Text on the drawing

7 STONE CAP CAULK JOINT TWO LAYERS OF PLYWOOD ONE LAYER OF PLYWOOD STAIR STRINGER STONE SIDE CARPET AND PAD STAIR PAN 4" MAXIMUM
