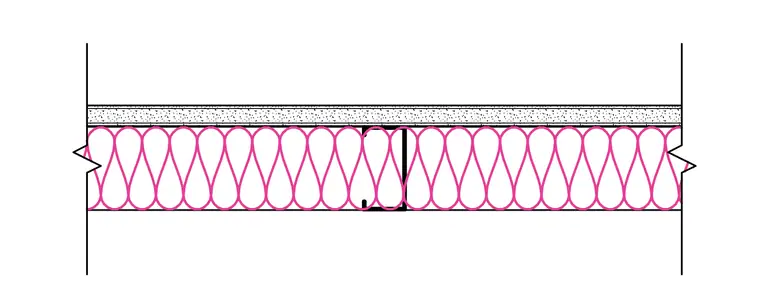

An interior partition wall assembly consisting of steel framing studs enclosed by layers of gypsum wallboard on both sides, with cavity insulation filling the space between studs. The perimeter vertical edges of the assembly terminate with finish framing members.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
