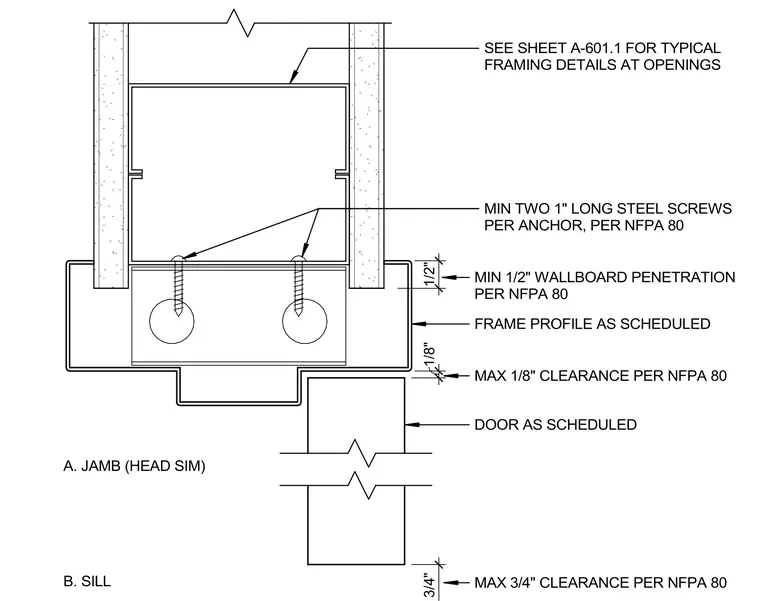

A metal door frame profile is secured to steel stud framing within a gypsum wallboard partition, incorporating a minimum one-half inch wallboard penetration per NFPA 80. The frame is fastened using a minimum of two one-inch long steel screws per anchor. A maximum clearance of one-eighth inch is maintained between the door frame and the door as scheduled, with a maximum three-quarter inch clearance at the sill per NFPA 80 requirements.
MIN TWO 1" LONG STEEL SCREWS PER ANCHOR, PER NFPA 80 A. JAMB (HEAD SIM) B. SILL SEE SHEET A-601.1 FOR TYPICAL FRAMING DETAILS AT OPENINGS FRAME PROFILE AS SCHEDULED DOOR AS SCHEDULED 1/2" 1/8" 3/4" MIN 1/2" WALLBOARD PENETRATION PER NFPA 80 MAX 1/8" CLEARANCE PER NFPA 80 MAX 3/4" CLEARANCE PER NFPA 80
