Architectural · A-32BS3

Bollard Type 2 Bolt Down

Materials

Concrete Steel

Elements

Columns Floors / Slabs Vaults / Domes Site / Paving Anchors / Embeds Connections / Plates

Connections

Gusset Plate Base Plate / Anchorage Welded Connection Bolted Connection Embed Plate

About this detail

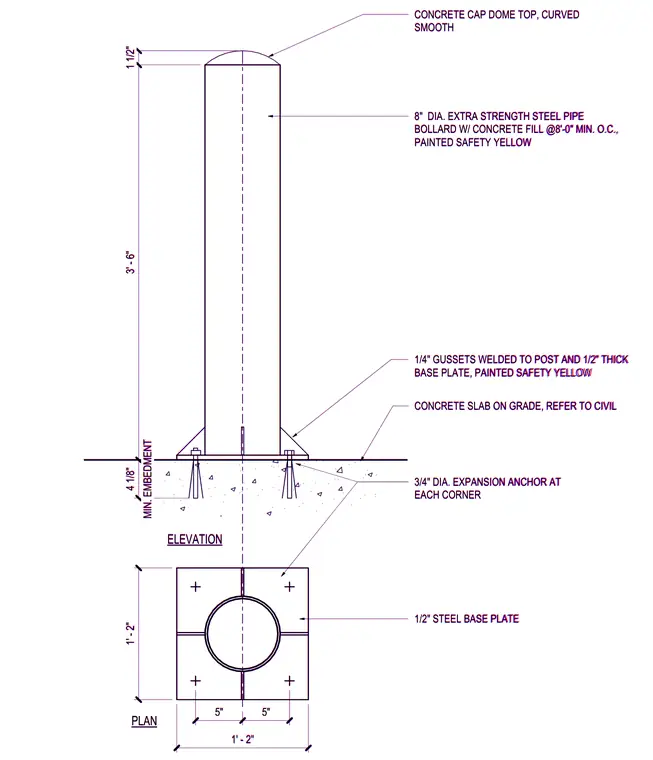

An eight-inch diameter extra strength steel pipe bollard is filled with concrete and topped with a smooth curved concrete dome, painted safety yellow throughout. The post welds to a one-half-inch thick steel base plate stiffened by quarter-inch gussets. Four three-quarter-inch diameter expansion anchors secure the base plate to the concrete slab on grade.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
