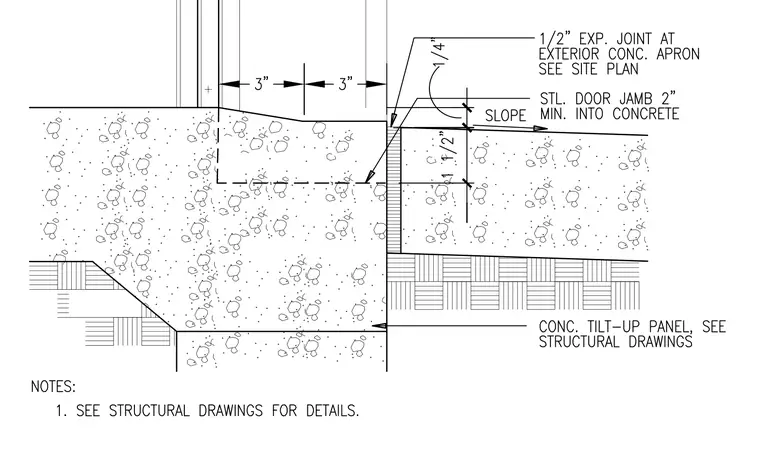

A concrete tilt-up panel bears on a continuous concrete foundation wall with compacted subgrade below. An exterior concrete apron abuts the wall, featuring a half-inch expansion joint and a slope of two inches minimum into the concrete. A steel door jamb is embedded within the threshold assembly. Three-inch dimension increments dictate the transition at the concrete edge.
