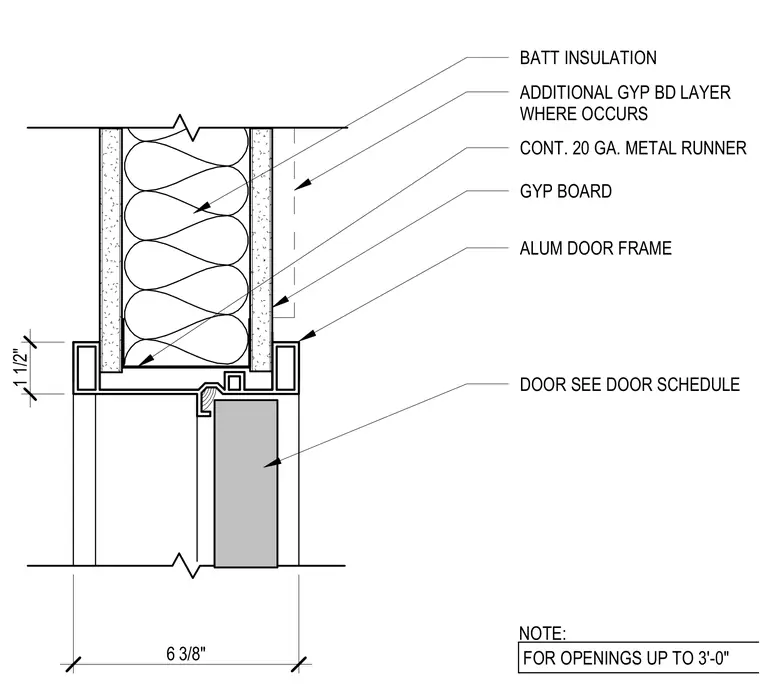

An aluminum door frame connects to the head of a metal stud wall assembly with a continuous twenty gauge metal runner. The six and three-eighths inch wall cavity contains batt insulation faced with gypsum board on both sides, including an additional layer of gypsum board where required. A note specifies this assembly for openings up to three feet wide.
6 3/8" BATT INSULATION ADDITIONAL GYP BD LAYER WHERE OCCURS GYP BOARD ALUM DOOR FRAME DOOR SEE DOOR SCHEDULE NOTE: FOR OPENINGS UP TO 3'-0" CONT. 20 GA. METAL RUNNER 1 1/2"
