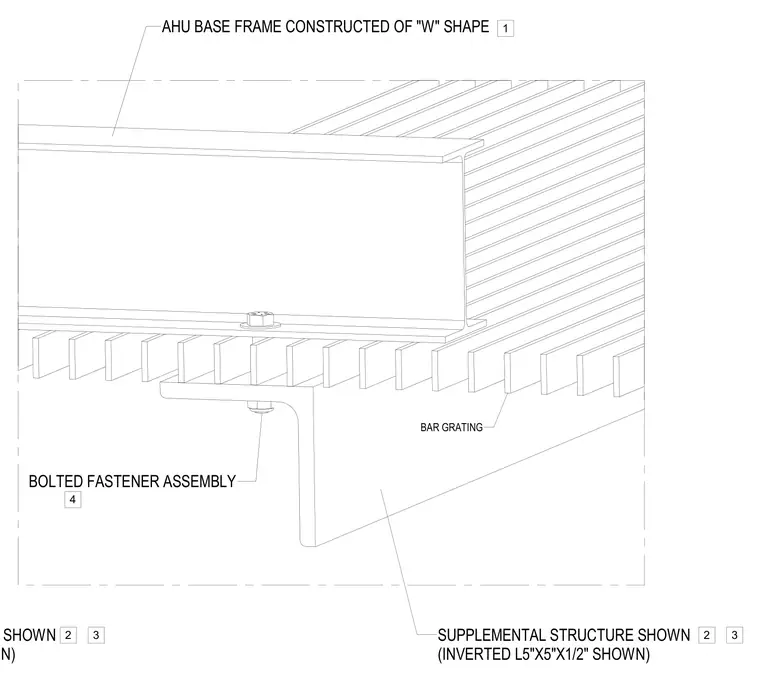

An air handling unit base frame constructed of a wide-flange W-shape rests above bar grating and a supplemental inverted L5x5x1/2 angle structure. Bolted fastener assemblies secure the components together across the structural framing.
AHU BASE FRAME CONSTRUCTED OF "W" SHAPE SUPPLEMENTAL STRUCTURE SHOWN (INVERTED L5"X5"X1/2" SHOWN) SUPPLEMENTAL STRUCTURE SHOWN (INVERTED L5"X5"X1/2" SHOWN) 1 2 2 3 3 4 BOLTED FASTENER ASSEMBLY BAR GRATING
