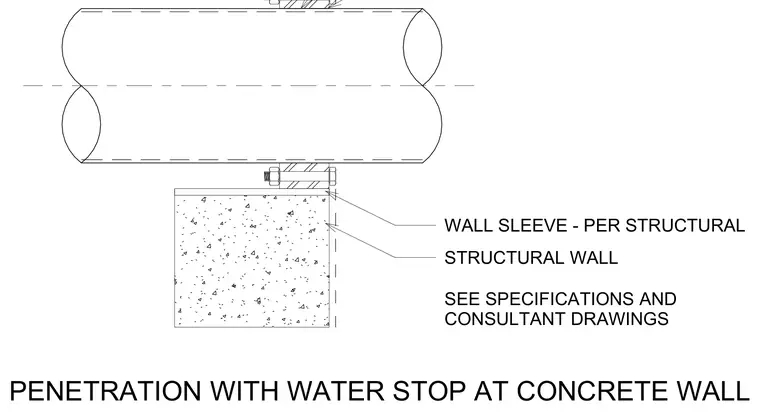

A pipe penetrates a structural concrete wall through a wall sleeve sized per structural requirements. A water stop assembly seals the annular space between the pipe and the concrete wall. Additional coordination is required per specifications and consultant drawings.
PENETRATION WITH WATER STOP AT CONCRETE WALL WALL SLEEVE - PER STRUCTURAL STRUCTURAL WALL SEE SPECIFICATIONS AND CONSULTANT DRAWINGS
