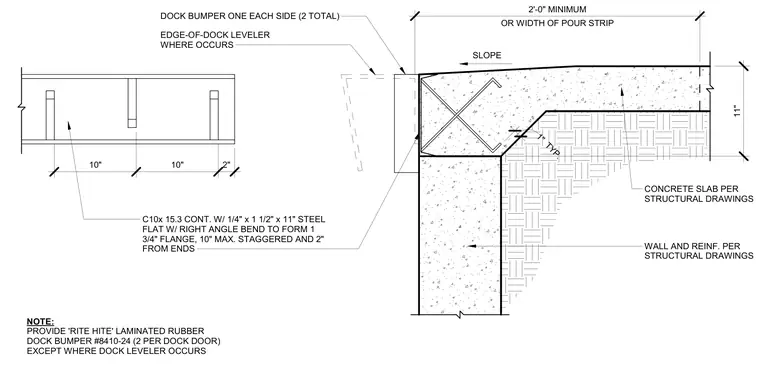

An eleven-inch thick concrete slab terminates at a loading dock edge reinforced with a continuous C10x15.3 steel channel embedded flush with the slab edge. The channel is detailed with a quarter-inch by one-and-a-half-inch by eleven-inch steel flat with a right-angle bend forming a one-and-three-quarter-inch flange, spaced at a maximum of ten inches staggered and two inches from the ends. A Rite Hite laminated rubber dock bumper model #8410-24 is mounted at each side of the dock door except where an edge-of-dock leveler occurs. A pour strip measuring a minimum of two feet wide is provided at the slab edge, and the concrete slab and supporting wall are reinforced per structural drawings.
1" TYP. 11" OR WIDTH OF POUR STRIP 2'-0" MINIMUM SLOPE CONCRETE SLAB PER STRUCTURAL DRAWINGS WALL AND REINF. PER STRUCTURAL DRAWINGS NOTE: PROVIDE 'RITE HITE' LAMINATED RUBBER DOCK BUMPER #8410-24 (2 PER DOCK DOOR) EXCEPT WHERE DOCK LEVELER OCCURS 10" 10" 2" C10x 15.3 CONT. W/ 1/4" x 1 1/2" x 11" STEEL FLAT W/ RIGHT ANGLE BEND TO FORM 1 3/4" FLANGE, 10" MAX. STAGGERED AND 2" FROM ENDS DOCK BUMPER ONE EACH SIDE (2 TOTAL) EDGE-OF-DOCK LEVELER WHERE OCCURS
