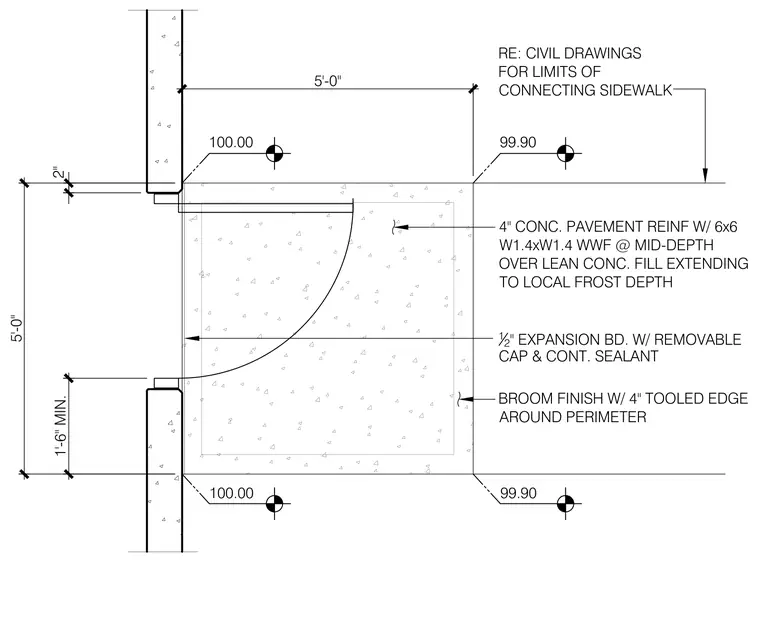

A four-inch thick concrete pavement is reinforced with 6x6 W1.4xW1.4 welded wire fabric placed at mid-depth. The slab bears over a lean concrete fill that extends downward to the local frost depth. A half-inch expansion board with a removable cap and continuous sealant separates the concrete assembly from the adjacent construction. The top surface receives a broom finish with a four-inch tooled edge around the perimeter.
5'-0" 5'-0" 2" 1'-6" MIN. 4" CONC. PAVEMENT REINF W/ 6x6 W1.4xW1.4 WWF @ MID-DEPTH OVER LEAN CONC. FILL EXTENDING TO LOCAL FROST DEPTH 99.90 99.90 100.00 100.00 12 " EXPANSION BD. W/ REMOVABLE CAP & CONT. SEALANT BROOM FINISH W/ 4" TOOLED EDGE AROUND PERIMETER RE: CIVIL DRAWINGS FOR LIMITS OF CONNECTING SIDEWALK
