A flush set floor drain is set within a reinforced concrete subfloor that slopes toward the drainage inlet. A continuous waterproofing membrane is applied beneath the floor build-up and tied into the drain body. A thin-set mortar bed rests over the membrane to receive the tile floor finish per the architectural schedule. The plumbing fixture is coordinated with specific plumbing drawings for rough-in and piping details.

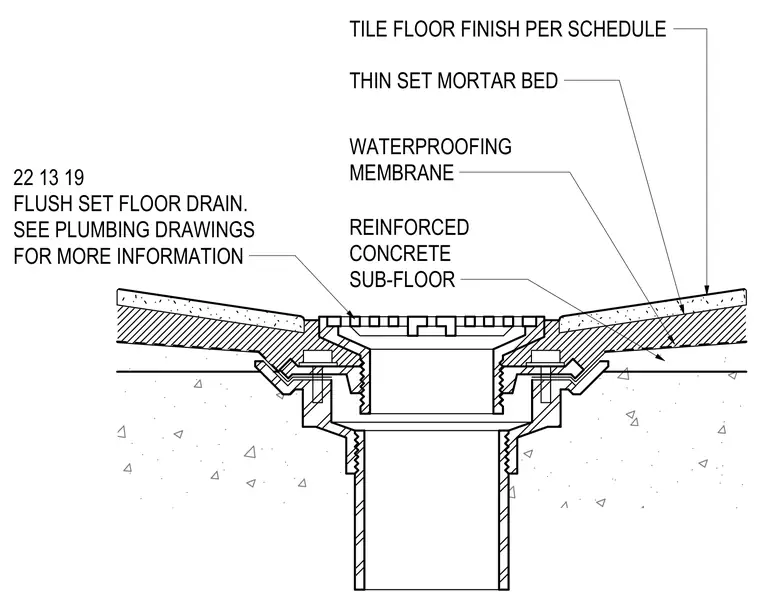

22 13 19 FLUSH SET FLOOR DRAIN. SEE PLUMBING DRAWINGS FOR MORE INFORMATION TILE FLOOR FINISH PER SCHEDULE THIN SET MORTAR BED WATERPROOFING MEMBRANE REINFORCED CONCRETE SUB-FLOOR
