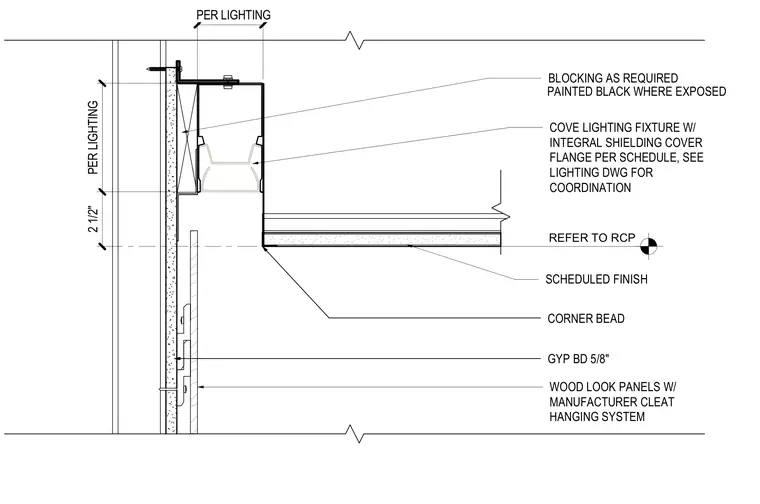

An accent wall integrates a cove lighting fixture with an integral shielding cover and cover flange. The fixture mounts adjacent to five-eighths inch gypsum board walls backed by required blocking, which is painted black where exposed. Below the cove, wood look panels attach using the manufacturer's cleat hanging system. A corner bead finishes the gypsum board edge at the ceiling intersection.
COVE LIGHTING FIXTURE W/ INTEGRAL SHIELDING COVER FLANGE PER SCHEDULE, SEE LIGHTING DWG FOR COORDINATION PER LIGHTING 2 1/2" PER LIGHTING REFER TO RCP BLOCKING AS REQUIRED SCHEDULED FINISH CORNER BEAD GYP BD 5/8" WOOD LOOK PANELS W/ MANUFACTURER CLEAT HANGING SYSTEM PAINTED BLACK WHERE EXPOSED
