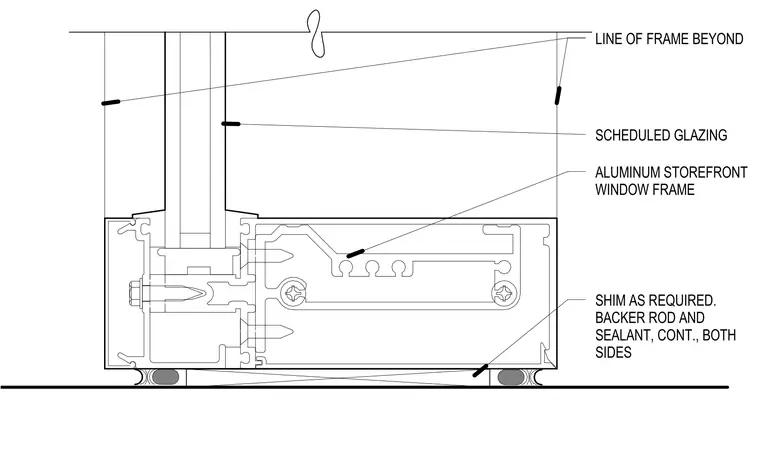

An aluminum storefront window frame is supported on continuous shims as required to level the assembly. Continuous backer rod and sealant are installed on both sides of the frame perimeter joint. Scheduled glazing is secured within the aluminum window frame profiles, with additional frame lines indicated beyond.
SHIM AS REQUIRED. BACKER ROD AND SEALANT, CONT., BOTH SIDES ALUMINUM STOREFRONT WINDOW FRAME LINE OF FRAME BEYOND SCHEDULED GLAZING
