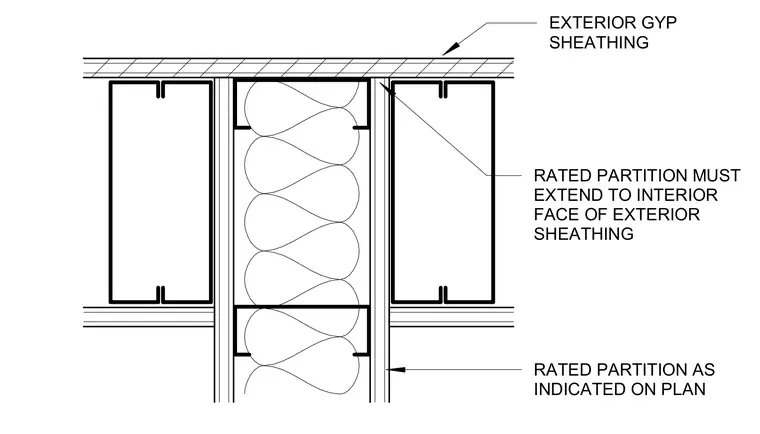

An interior rated partition wall meets an exterior wall lined with exterior gypsum sheathing. The rated partition extends completely to the interior face of the exterior sheathing as indicated on the plan. This intersection maintains the required fire-resistance rating between spaces.
EXTERIOR GYP SHEATHING RATED PARTITION AS INDICATED ON PLAN RATED PARTITION MUST EXTEND TO INTERIOR FACE OF EXTERIOR SHEATHING
