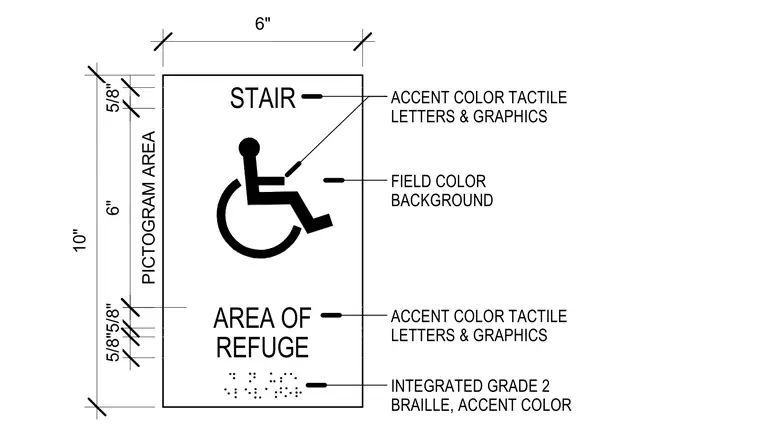

This ten-inch by six-inch sign features accent color tactile letters, graphics, and a pictogram area over a field color background, complete with integrated grade 2 braille. The layout includes five-eighths inch margins and spacings surrounding the central wheelchair pictogram and text reading stair and area of refuge.
STAIR 10" 6" FIELD COLOR BACKGROUND ACCENT COLOR TACTILE LETTERS & GRAPHICS INTEGRATED GRADE 2 BRAILLE, ACCENT COLOR PICTOGRAM AREA 6" AREA OF REFUGE 5/8" 5/8" ACCENT COLOR TACTILE LETTERS & GRAPHICS 5/8"
