Architectural · A-2XY48

Back Bar Feature Wall Section and Millwork Integration

Materials

Cold-formed Steel Timber / Wood Stone Aluminum Metal (misc.)Gypsum / Drywall

Elements

Walls Facades / Cladding Ceilings Floors / Slabs Millwork / Casework

About this detail

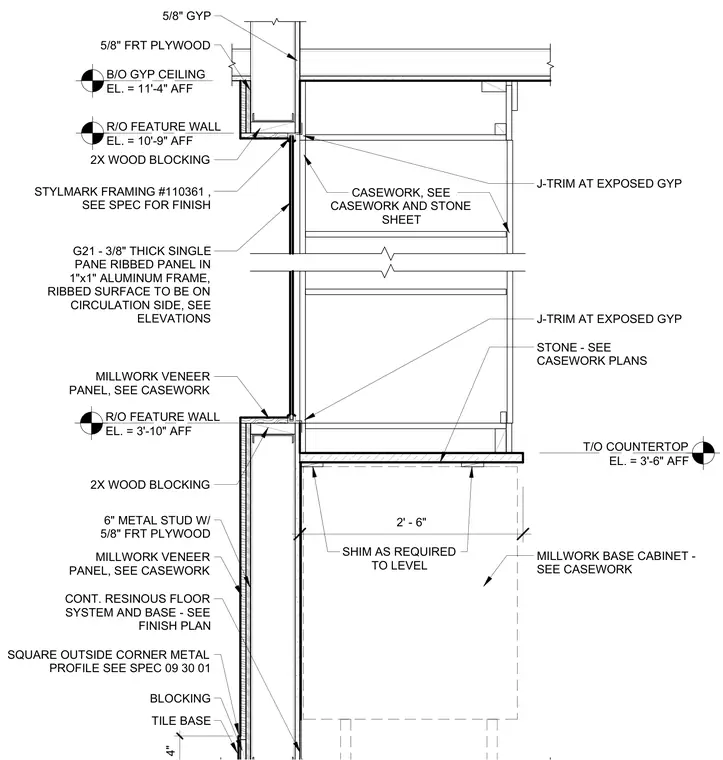

A vertical section details the assembly of a back bar feature wall utilizing a six-inch metal stud backup wall sheathed with five-eighths-inch fire-retardant plywood and finished with millwork veneer panels. The feature wall incorporates a three-eighths-inch thick single-pane ribbed panel housed within an aluminum frame and secured with Stylmark framing members. A stone countertop rests above a millwork base cabinet, shimmed as required for leveling over a continuous resinous floor system and base. Exposed gypsum edges are protected with J-trims, and the outside corner includes a square metal profile. Elevations are referenced for finished floor, countertop, and rough opening heights.
