An accessible parking space surface identification layout outlines the required color schemes and dimensions for pavement markings. Option one requires an accessibility symbol in white on a blue background, while option two permits a white or contrasting symbol on a painted blue parking space outline. The surface identification symbol maintains a minimum dimension of thirty-six inches by thirty-six inches. A minimum clearance height of eighty inches above the finish floor or ground surface is maintained along circulation paths.

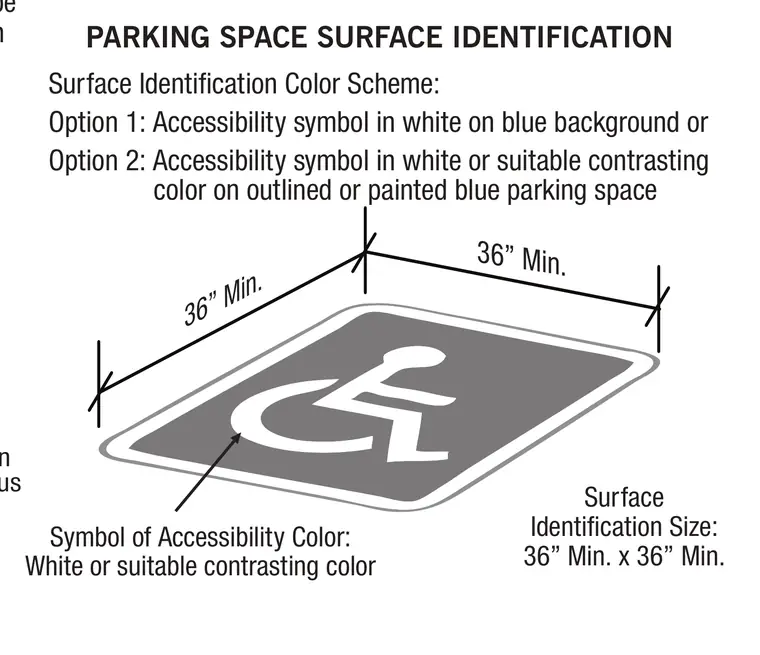

a circulation path must be 80” Min. above the finish floor/ground surface PARKING SPACE SURFACE IDENTIFICATION Surface Identification Color Scheme: Option 1: Accessibility symbol in white on blue background or Option 2: Accessibility symbol in white or suitable contrasting color on outlined or painted blue parking space 36” Min. 36” Min. Surface Identification Size: 36” Min. x 36” Min. Symbol of Accessibility Color: White or suitable contrasting color Lettering be posted in a conspicuous
