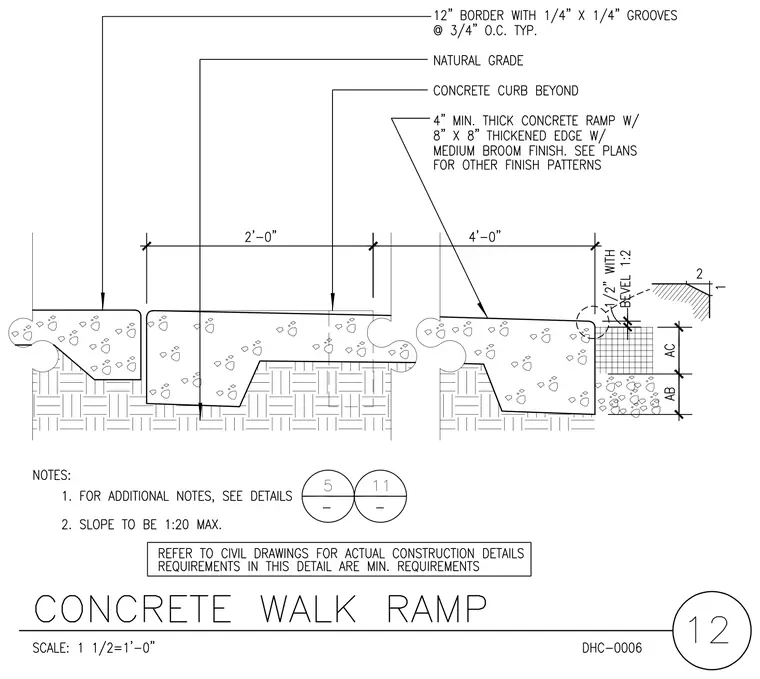

A four-inch minimum thick concrete ramp features an eight by eight inch thickened edge and a medium broom finish, set above natural grade and a concrete curb beyond. The assembly includes a twelve-inch border with quarter-inch by quarter-inch grooves spaced at three-quarters of an inch on center typical. Dimensions show a two-foot and four-foot span with a one-to-two bevel and a maximum slope of one-to-twenty. Notes direct to civil drawings for actual construction details and reference additional details as needed.
