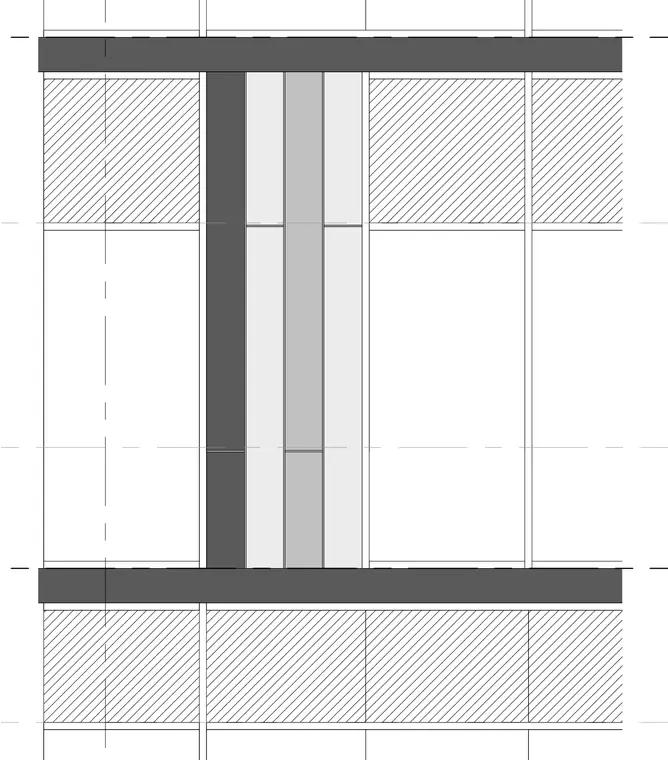

A vertical mullion junction interfaces with spandrel panels and glazing vision glass units. The assembly incorporates extruded aluminum framing members dividing the glazed openings. Standard structural alignment lines and centerlines indicate the coordinate grid placement of the curtain wall components.
