The wall pad assembly features an oriented strand board backing secured over a stud wall framing. Fasteners anchor the padded unit at a height of six feet and include a wall base installed where indicated at the floor finish. The framing system accommodates interior wall pads as scheduled with a specific assembly weight of 2.75 pounds per square foot.

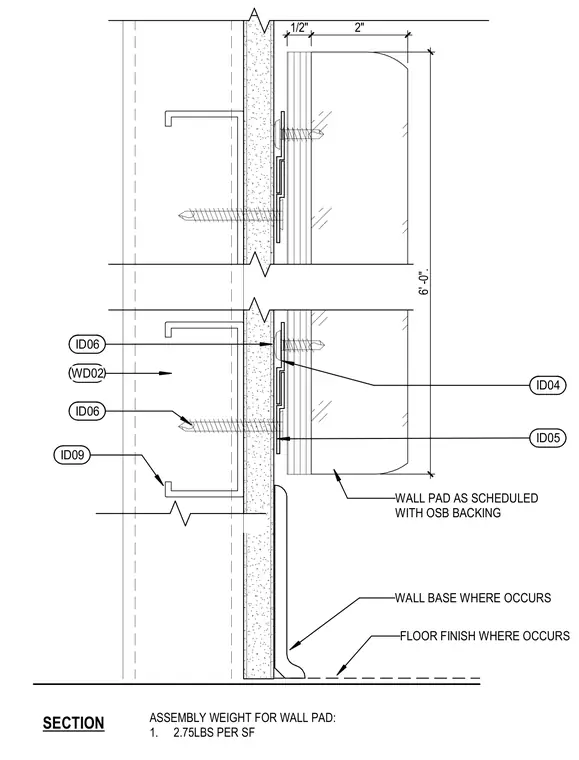

6' -0". SECTION ID05 ID04 WD02 ID09 ID06 ID06 WALL BASE WHERE OCCURS FLOOR FINISH WHERE OCCURS 1/2" 2" WALL PAD AS SCHEDULED WITH OSB BACKING ASSEMBLY WEIGHT FOR WALL PAD: 1. 2.75LBS PER SF
