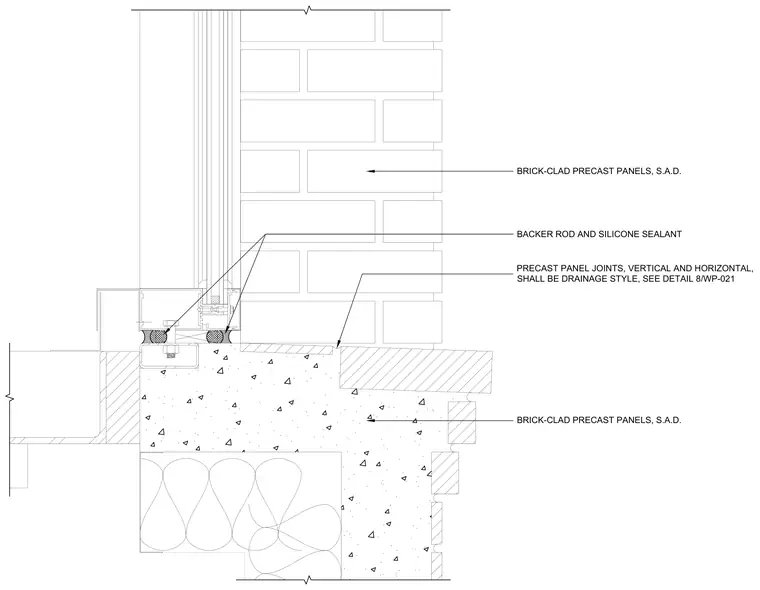

This window sill assembly connects to brick-clad precast concrete panels utilizing backer rods and silicone sealant for weatherproofing. Vertical and horizontal precast panel joints are designed as drainage-style joints. Insulation is incorporated within the precast panel assembly below the window opening.
BRICK-CLAD PRECAST PANELS, S.A.D. BACKER ROD AND SILICONE SEALANT PRECAST PANEL JOINTS, VERTICAL AND HORIZONTAL, SHALL BE DRAINAGE STYLE, SEE DETAIL 8/WP-021 BRICK-CLAD PRECAST PANELS, S.A.D.
