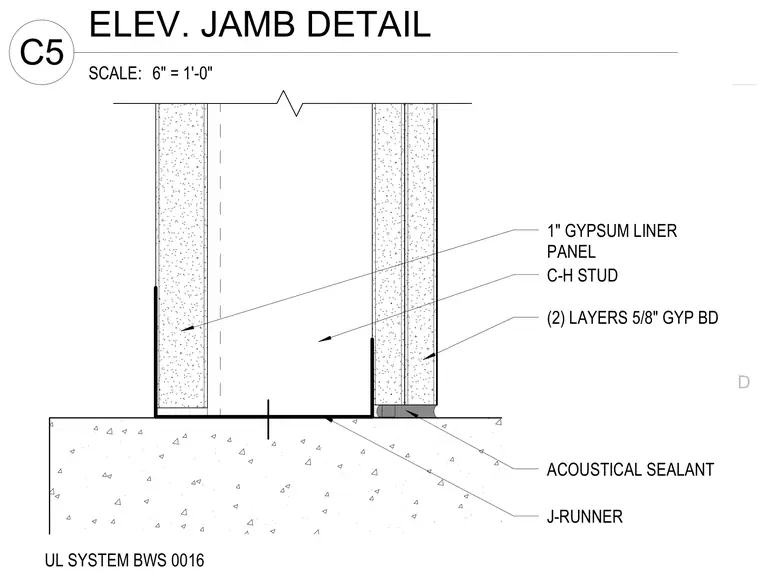

The shaft wall jamb assembly is anchored to a concrete substrate using a steel J-runner at the base. C-H studs and one-inch gypsum liner panels form the core cavity of the assembly. Two layers of five-eighths-inch gypsum board face the exterior side. Acoustical sealant is applied at the perimeter joint to maintain sound ratings per UL System BWS 0016.
1" GYPSUM LINER PANEL ACOUSTICAL SEALANT (2) LAYERS 5/8" GYP BD C-H STUD J-RUNNER UL SYSTEM BWS 0016 D SCALE: 6" = 1'-0" C5 ELEV. JAMB DETAIL
