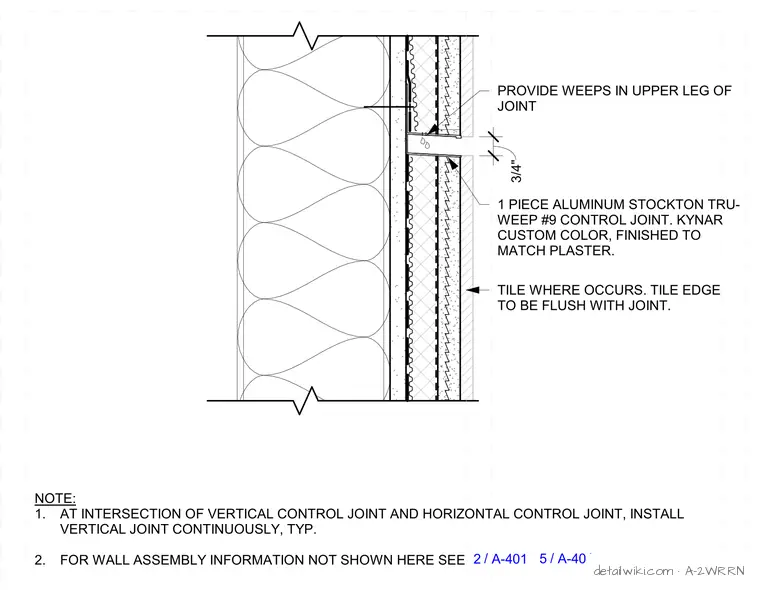

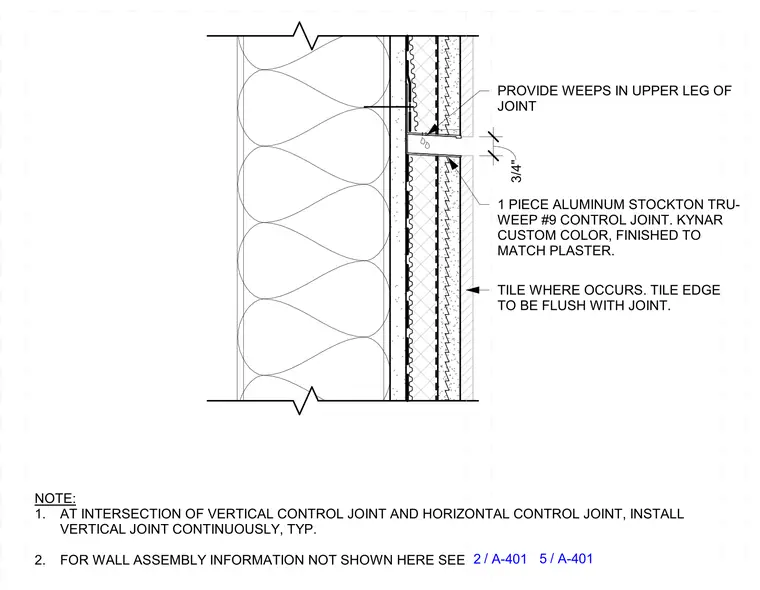

A horizontal control joint assembly integrates into a plaster and tile wall over batt insulation and sheathing. A one-piece aluminum Stockton Tru-Weep number nine control joint spans the three-quarter-inch gap with a Kynar custom color finish matching the adjacent plaster. Where tile occurs, the tile edge is installed flush with the joint. Weeps are provided in the upper leg of the joint for drainage. The vertical control joint installs continuously at intersections with the horizontal joint.
NOTE: 1. AT INTERSECTION OF VERTICAL CONTROL JOINT AND HORIZONTAL CONTROL JOINT, INSTALL VERTICAL JOINT CONTINUOUSLY, TYP. 2. FOR WALL ASSEMBLY INFORMATION NOT SHOWN HERE SEE / 2 A-401 / 5 A-401 1 PIECE ALUMINUM STOCKTON TRU- WEEP #9 CONTROL JOINT. KYNAR CUSTOM COLOR, FINISHED TO MATCH PLASTER. TILE WHERE OCCURS. TILE EDGE TO BE FLUSH WITH JOINT. 3/4" PROVIDE WEEPS IN UPPER LEG OF JOINT
