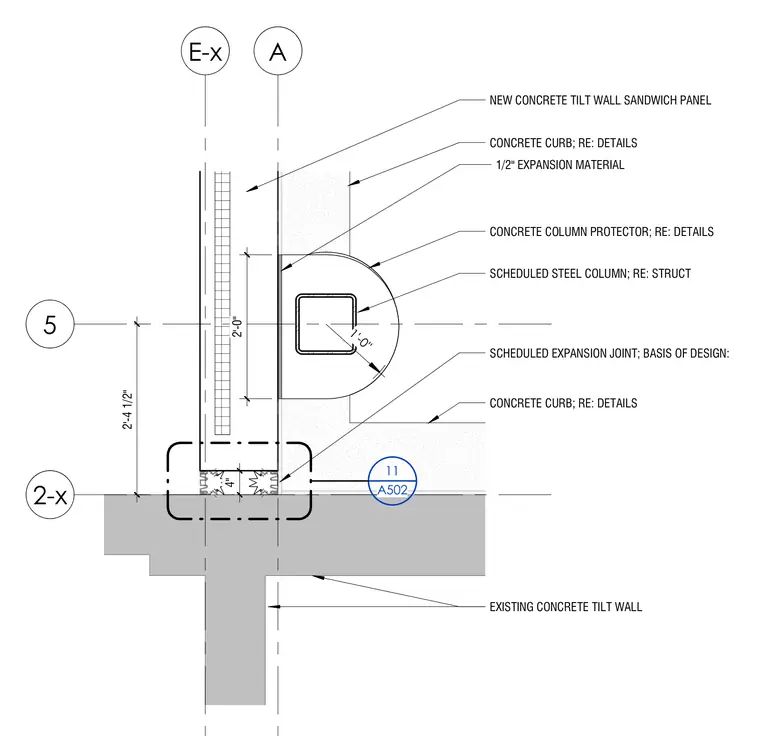

A four-inch scheduled expansion joint is positioned between a new concrete tilt wall sandwich panel and an existing concrete tilt wall. A scheduled steel column is enclosed by a concrete column protector, flanked by concrete curbs on a structural foundation. A one-half-inch expansion material layer is integrated at the wall junction.
A 5 2-x E-x 4" SCHEDULED EXPANSION JOINT; BASIS OF DESIGN: SCHEDULED STEEL COLUMN; RE: STRUCT CONCRETE COLUMN PROTECTOR; RE: DETAILS CONCRETE CURB; RE: DETAILS 2'-4 1/2" 2'-0" 1'-0" CONCRETE CURB; RE: DETAILS EXISTING CONCRETE TILT WALL NEW CONCRETE TILT WALL SANDWICH PANEL A502 11 1/2" EXPANSION MATERIAL
