A painted steel stair guardrail stands at three feet six inches above a concrete landing, anchored with a twelve-gauge steel top plate welded to the posts and a steel angle. A separate painted handrail projects at two feet ten inches above the landing, positioned three and a half inches clear of the adjacent wall. Painted metal supports sit beyond the primary assembly. All steel components receive a painted finish.

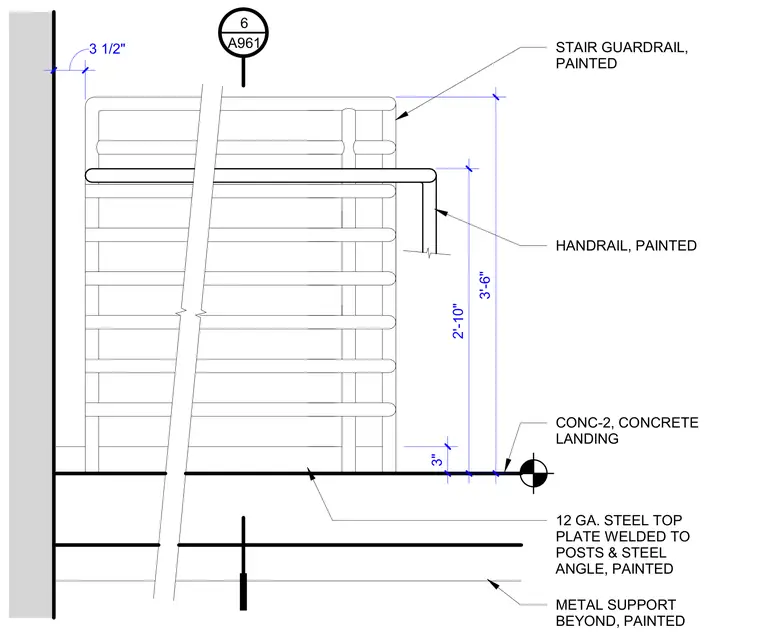

3" 2'-10" 3'-6" 3 1/2" STAIR GUARDRAIL, PAINTED HANDRAIL, PAINTED CONC-2, CONCRETE LANDING 12 GA. STEEL TOP PLATE WELDED TO POSTS & STEEL ANGLE, PAINTED METAL SUPPORT BEYOND, PAINTED 6 A961
