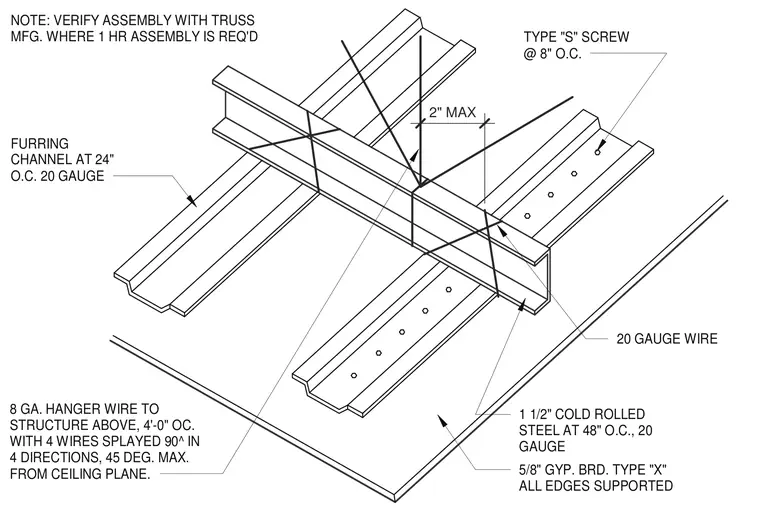

The ceiling assembly is suspended from the structure above by eight-gauge hanger wires spaced at four feet on center, with four wires splayed ninety degrees in four directions at a maximum of forty-five degrees from the ceiling plane. One-and-a-half-inch twenty-gauge cold-rolled steel channels run at forty-eight inches on center and support twenty-gauge furring channels spaced at twenty-four inches on center. Five-eighth-inch Type X gypsum board is fastened to the furring channels with Type S screws spaced at eight inches on center, with all edges supported. A note requires verifying the assembly with the truss manufacturer where a one-hour fire-rated assembly is required.
8 GA. HANGER WIRE TO STRUCTURE ABOVE, 4'-0" OC. WITH 4 WIRES SPLAYED 90^ IN 4 DIRECTIONS, 45 DEG. MAX. FROM CEILING PLANE. 5/8" GYP. BRD. TYPE "X" ALL EDGES SUPPORTED 1 1/2" COLD ROLLED STEEL AT 48" O.C., 20 GAUGE 20 GAUGE WIRE TYPE "S" SCREW @ 8" O.C. NOTE: VERIFY ASSEMBLY WITH TRUSS MFG. WHERE 1 HR ASSEMBLY IS REQ'D FURRING CHANNEL AT 24" O.C. 20 GAUGE 2" MAX
