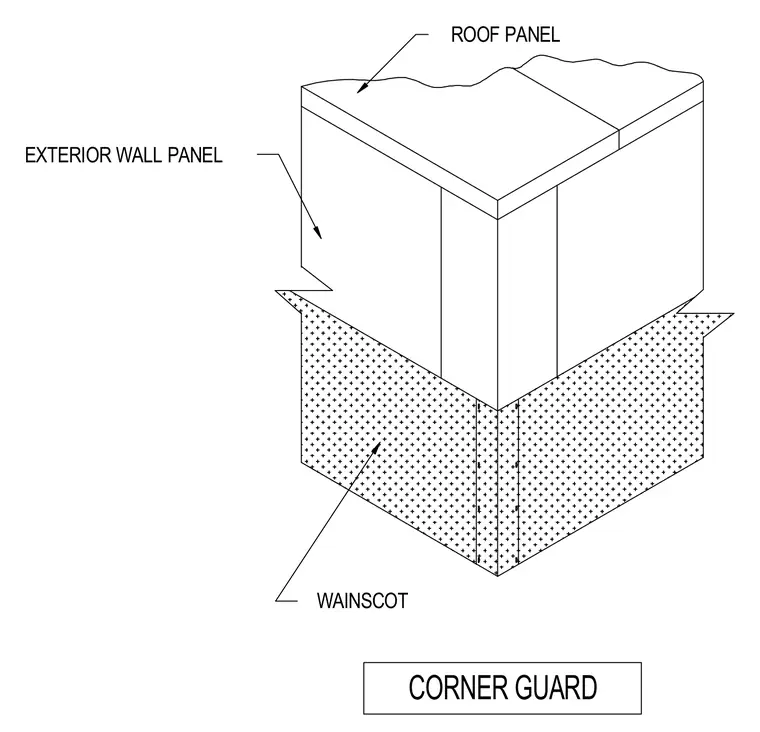

An exterior wall panel corner guard assembly details the junction between exterior wall panels, a wainscot, and a roof panel. The corner guard profile wraps the vertical building corner over the wainscot and lower wall panel sections. The upper exterior wall panels meet the roof panel system at the top edge of the assembly.
