A hold down clip is installed every 12 inches along the perimeter plank carrier molding item 5574 SCPB. Item 7237S3 is installed at all planks and fastened with number 8 by 1/2-inch framing screws. The perimeter plank features a cut edge meeting the carrier molding.

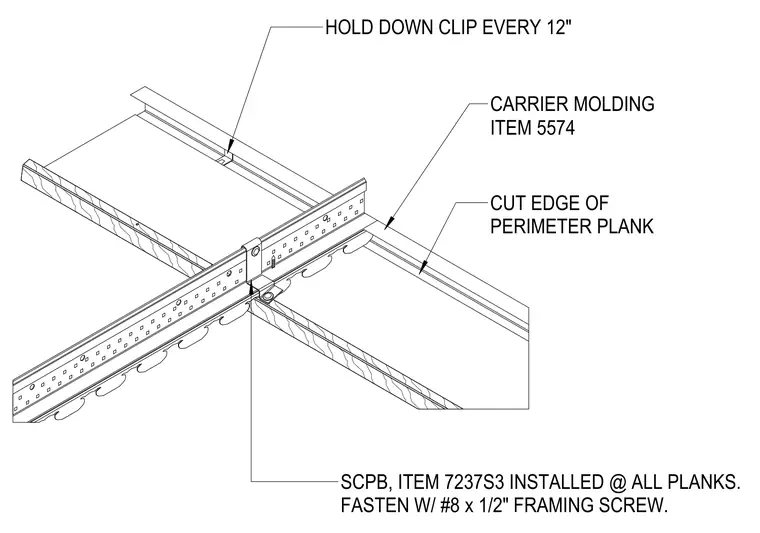

CUT EDGE OF PERIMETER PLANK CARRIER MOLDING ITEM 5574 SCPB, ITEM 7237S3 INSTALLED @ ALL PLANKS. FASTEN W/ #8 x 1/2" FRAMING SCREW. HOLD DOWN CLIP EVERY 12"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
