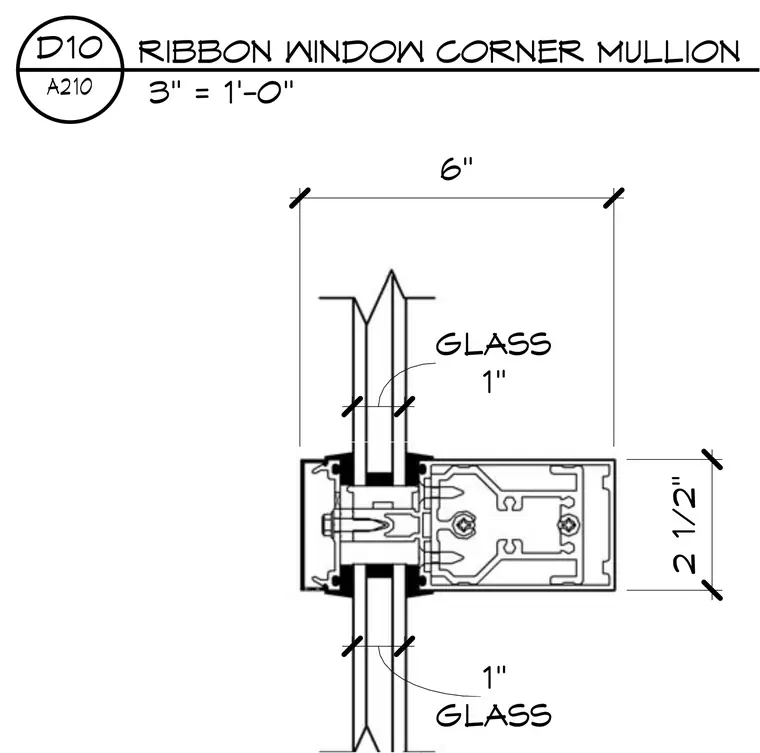

A ribbon window corner mullion framing condition with one-inch insulated glass panes. The assembly features extruded aluminum mullion profiles configured to form a corner junction with specific dimensional clearances. One-inch glass panels are secured within the framing channels using standard gaskets.
