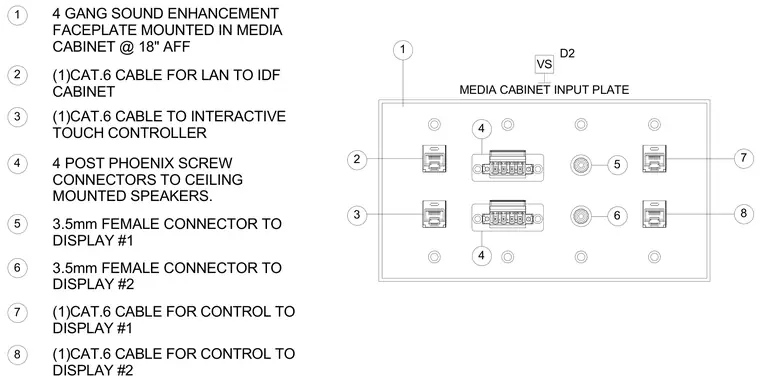

A four-gang sound enhancement faceplate is mounted in a media cabinet at eighteen inches above finished floor. Connections include one Category 6 cable for local area network to the intermediate distribution frame cabinet, one Category 6 cable to the interactive touch controller, and four-post Phoenix screw connectors linking to ceiling-mounted speakers. Additional terminations include 3.5-millimeter female connectors for display one and display two, alongside Category 6 control cables for both displays.
1 2 3 5 7 4 6 8 1 2 3 4 4 5 6 7 8 4 GANG SOUND ENHANCEMENT FACEPLATE MOUNTED IN MEDIA CABINET @ 18" AFF (1)CAT.6 CABLE FOR LAN TO IDF CABINET (1)CAT.6 CABLE TO INTERACTIVE TOUCH CONTROLLER 3.5mm FEMALE CONNECTOR TO DISPLAY #1 4 POST PHOENIX SCREW CONNECTORS TO CEILING MOUNTED SPEAKERS. (1)CAT.6 CABLE FOR CONTROL TO DISPLAY #1 3.5mm FEMALE CONNECTOR TO DISPLAY #2 (1)CAT.6 CABLE FOR CONTROL TO DISPLAY #2 MEDIA CABINET INPUT PLATE VS D2
