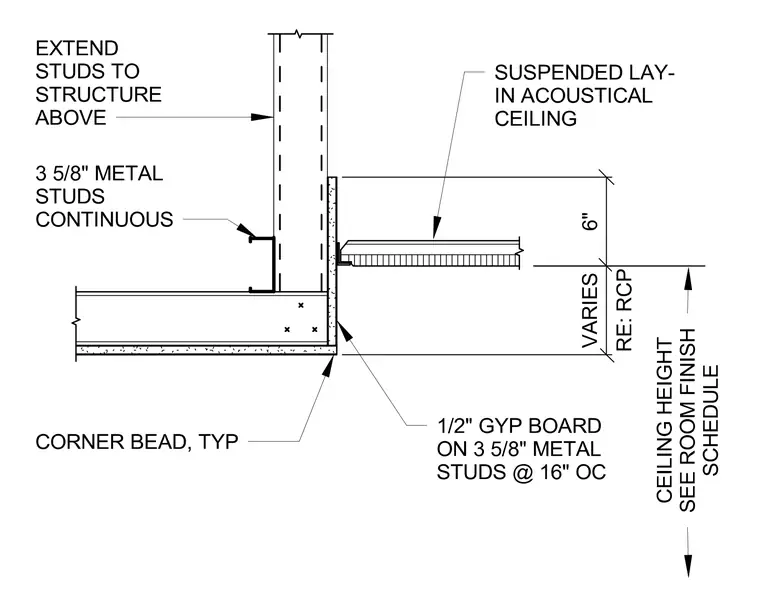

Continuous 3-5/8 inch metal studs extend upward to the structure above, with additional 3-5/8 inch metal studs framing the partition. A suspended lay-in acoustical ceiling intersects the wall, maintaining a standard 6 inch clearance from the ceiling level to the structure above, with varying heights per the reflected ceiling plan. The wall assembly is finished with 1/2 inch gypsum board on 3-5/8 inch metal studs spaced at 16 inches on center, protected by typical corner beads.
