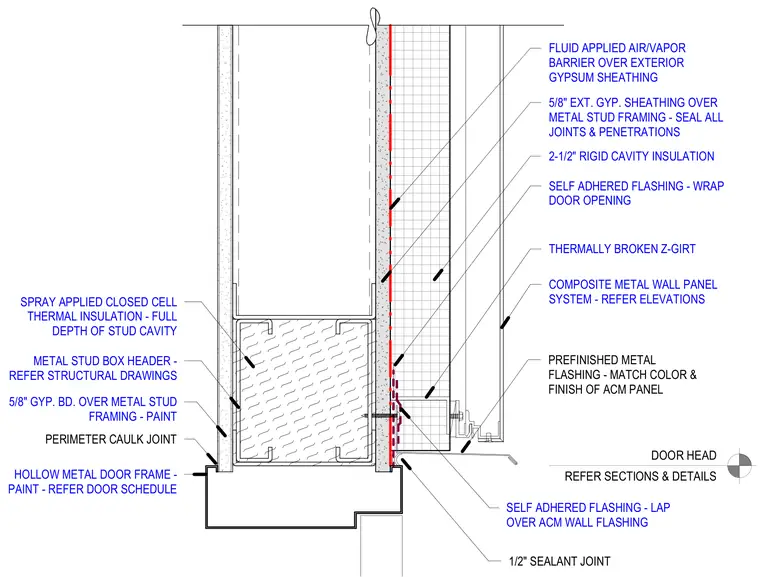

A hollow metal door head condition is framed by a metal stud box header with full-depth spray-applied closed cell thermal insulation and a 5/8-inch gypsum board interior finish. The exterior wall assembly features cold-formed metal stud framing with 5/8-inch exterior gypsum sheathing, a fluid-applied air and vapor barrier, 2-1/2-inch rigid cavity insulation, and thermally broken Z-girts supporting a composite metal wall panel system. Self-adhered flashing wraps the door opening and laps over the prefinished metal flashing at the head. A 1/2-inch perimeter caulk joint seals the interface between the hollow metal door frame and the wall finish.
COMPOSITE METAL WALL PANEL SYSTEM - REFER ELEVATIONS THERMALLY BROKEN Z-GIRT 2-1/2" RIGID CAVITY INSULATION 5/8" EXT. GYP. SHEATHING OVER METAL STUD FRAMING - SEAL ALL JOINTS & PENETRATIONS FLUID APPLIED AIR/VAPOR BARRIER OVER EXTERIOR GYPSUM SHEATHING SELF ADHERED FLASHING - WRAP DOOR OPENING SELF ADHERED FLASHING - LAP OVER ACM WALL FLASHING PREFINISHED METAL FLASHING - MATCH COLOR & FINISH OF ACM PANEL 1/2" SEALANT JOINT PERIMETER CAULK JOINT 5/8" GYP. BD. OVER METAL STUD FRAMING - PAINT DOOR HEAD REFER SECTIONS & DETAILS METAL STUD BOX HEADER - REFER STRUCTURAL DRAWINGS SPRAY APPLIED CLOSED CELL THERMAL INSULATION - FULL DEPTH OF STUD CAVITY HOLLOW METAL DOOR FRAME - PAINT - REFER DOOR SCHEDULE
