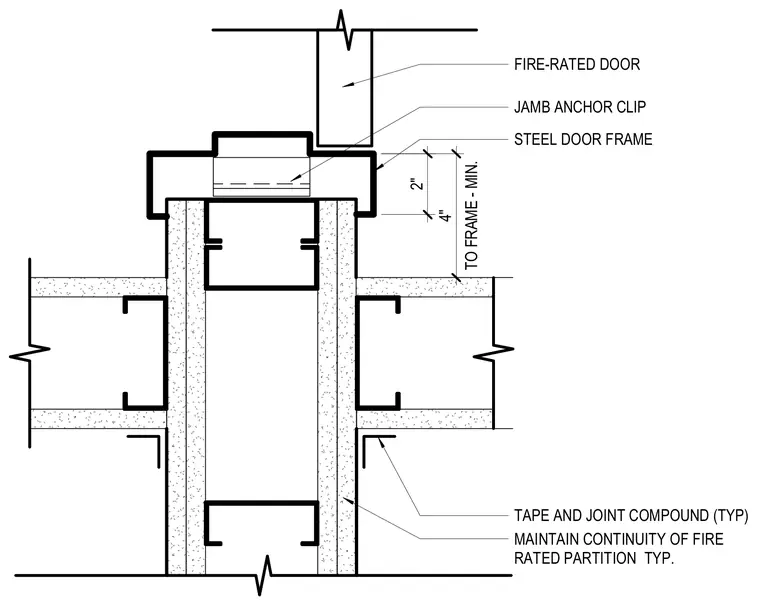

A hollow metal steel door frame is anchored to a steel stud partition wall using a jamb anchor clip. The gypsum board layers are finished with tape and joint compound, maintaining the continuity of the fire-rated partition. The fire-rated door closes against the frame, with dimensional clearances indicated from the frame to adjacent wall construction.
MAINTAIN CONTINUITY OF FIRE RATED PARTITION TYP. TAPE AND JOINT COMPOUND (TYP) STEEL DOOR FRAME JAMB ANCHOR CLIP FIRE-RATED DOOR TO FRAME - MIN. 4" 2"
